MAX3045BCSE+ - Analog Devices

Description: Maxim MAX3045BCSE+, Line Transceiver, IEC 1000-4-4 4-TX 4-RX 4-TRX, 4.75 → 5.25 V, 16-Pin SOIC

Download MAX3045BCSE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

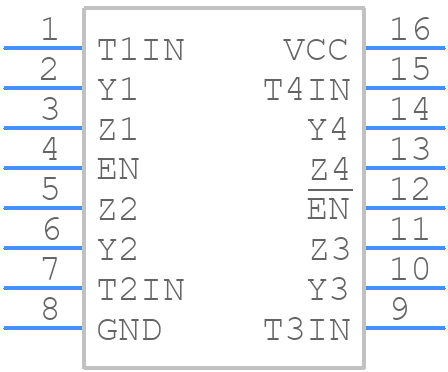

MAX3045BCSE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3045BCSE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16MS+11
click to zoom
3D Models
MAX3045BCSE+ - Analog Devices - 3D model - Small Outline Packages - W16MS+11
click to zoom

MAX3045BCSE+ Details

  • Manufacturer Part Number:

    MAX3045BCSE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.300 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3.9 mm

MAX3045BCSE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3045BCSE+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the signal source. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. The input common-mode voltage should be within the recommended range (0.3V to VCC - 0.3V). Additionally, ensure that the input signals are properly terminated and that the output is loaded with a suitable impedance.
  • The MAX3045BCSE+ can support data rates up to 100Mbps, making it suitable for high-speed applications such as USB, SATA, and PCIe. However, the actual data rate may be limited by the system's signal integrity, PCB layout, and other factors.
  • The MAX3045BCSE+ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-free environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device and the system.
  • Yes, the MAX3045BCSE+ can be used in hot-swap applications, but it's essential to ensure that the device is properly powered down before the hot-swap event. The device's power-down feature can be used to disconnect the output during hot-swap, and the device's built-in overcurrent protection can help prevent damage during the hot-swap process.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3045BCSE+ Overview

Use the download button to access the MAX3045BCSE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
