MAX3055ASD+ - Analog Devices

Description: ±80V Fault-Protected/Tolerant CAN Transceiver, 14 SO

Download MAX3055ASD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

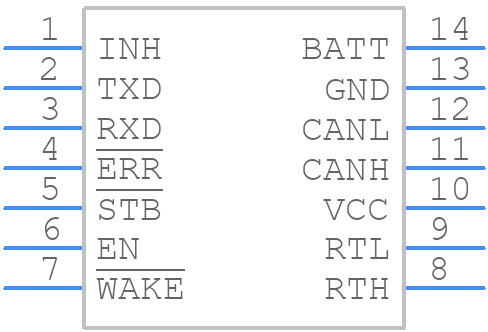

MAX3055ASD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3055ASD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - so14
click to zoom
3D Models
MAX3055ASD+ - Analog Devices - 3D model - Small Outline Packages - so14
click to zoom

MAX3055ASD+ Details

  • Manufacturer Part Number:

    MAX3055ASD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2002-12-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3055ASD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3055ASD+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the isolation barrier. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed close to the isolation barrier to minimize the length of the traces.
  • To ensure reliable operation of the MAX3055ASD+ in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • The maximum data rate that can be achieved with the MAX3055ASD+ depends on the specific application and the quality of the isolation barrier. However, in general, the device can support data rates of up to 100 Mbps. It is essential to follow the recommended layout and design guidelines to achieve the maximum data rate.
  • Common issues with the MAX3055ASD+ include incorrect pin connections, inadequate power supply decoupling, and poor PCB layout. To troubleshoot these issues, it is essential to follow a systematic approach, starting with a visual inspection of the PCB and device, followed by signal integrity analysis and power supply verification. Additionally, the device's built-in diagnostic features, such as the fault detection pin, can be used to identify and isolate issues.
  • When using the MAX3055ASD+, key considerations for EMI and RFI mitigation include using a shielded enclosure, minimizing the length of the traces between the device and the isolation barrier, and using EMI filters or chokes on the power supply lines. Additionally, the device's built-in EMI filters and shielding can be used to reduce electromagnetic interference.
