MAX3079EESD+ - Analog Devices

Description: MAX3079EESD+, Line Transceiver, RS-485, RS-422 16Mbit/s Differential, 3.3 V, 14-Pin SOIC

Download MAX3079EESD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

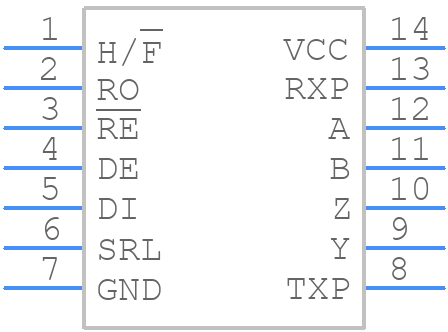

MAX3079EESD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3079EESD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO 14 pinout
click to zoom
3D Models
MAX3079EESD+ - Analog Devices - 3D model - Small Outline Packages - SO 14 pinout
click to zoom

MAX3079EESD+ Details

  • Manufacturer Part Number:

    MAX3079EESD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012AB, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.001 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.63 V

  • Supply Voltage1-Min:

    2.97 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    800 ns

  • Width:

    3.9 mm

MAX3079EESD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3079EESD+ involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the connector. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure reliable operation of the MAX3079EESD+ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to +125°C).
  • When using the MAX3079EESD+ in a system with multiple voltage domains, it's essential to ensure that the device is powered from a single voltage domain to avoid latch-up or other reliability issues. Additionally, the device's input and output signals should be properly level-shifted and isolated to prevent voltage domain conflicts.
  • To troubleshoot issues with the MAX3079EESD+, start by verifying the device's power supply and clock signals. Check for proper signal termination, and ensure that the device is properly configured and initialized. Use oscilloscopes and logic analyzers to debug the device's input and output signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The MAX3079EESD+ has built-in ESD protection on its input and output pins, which can withstand electrostatic discharges up to ±15kV according to the IEC 61000-4-2 standard. This provides a high level of protection against ESD events that may occur during handling or operation of the device.
