MAX3093EESE+ - Analog Devices

Description: MAX3093EESE+, Quad Line Receiver, RS-485, RS-422, 4 10Mbit/s Differential 16-Pin SOIC

Download MAX3093EESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

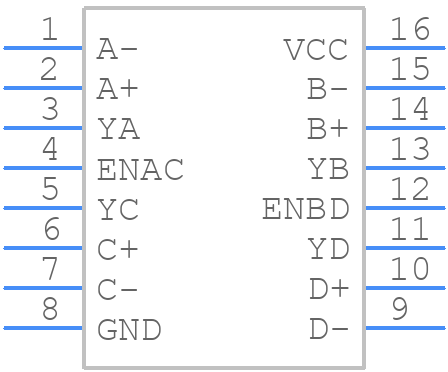

MAX3093EESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3093EESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX3093EESE+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX3093EESE+ Details

  • Manufacturer Part Number:

    MAX3093EESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    90 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3093EESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3093EESE+ involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the signal source. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure reliable operation of the MAX3093EESE+ in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device's junction temperature should be kept below 150°C to prevent thermal shutdown.
  • The maximum cable length that can be driven by the MAX3093EESE+ depends on the specific application and the type of cable used. However, as a general rule, the device can drive cables up to 100 meters long at data rates up to 100 Mbps. For longer cable lengths or higher data rates, repeaters or active cables may be necessary.
  • To troubleshoot common issues with the MAX3093EESE+, start by checking the device's power supply and signal connections. Verify that the device is properly powered and that the signal inputs are within the specified voltage range. Use an oscilloscope to check the signal integrity and look for signs of signal degradation or distortion. If the issue persists, check the device's thermal performance and ensure that it is operating within the specified temperature range.
  • Yes, the MAX3093EESE+ is designed to be a low-power device, making it suitable for applications that require low power consumption. The device has a typical quiescent current of 150 μA and can operate from a single 3.3V supply. Additionally, the device has a shutdown mode that can be used to further reduce power consumption when the device is not in use.
