MAX3093EESE+T - Analog Devices

Description: RS-422/RS-485 Interface IC 15kV ESD-Protected, 10Mbps, 3V/5V, Low-Power Quad RS-422/RS-485 Receivers

Download MAX3093EESE+T Model

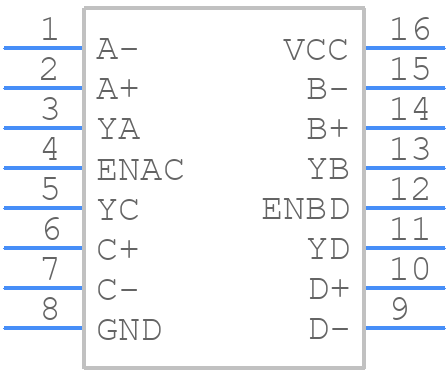

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX3093EESE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX3093EESE+T - Analog Devices  - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX3093EESE+T Details

  • Manufacturer Part Number:

    MAX3093EESE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    90 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3093EESE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3093EESE+T involves keeping the signal traces short, using a solid ground plane, and placing the device close to the connector. Additionally, it's recommended to use a common-mode choke and ferrite beads to filter out high-frequency noise.
  • To ensure proper termination, a 120Ω resistor should be connected between the DE and RE pins, and a 560Ω resistor should be connected between the DE pin and VCC. Additionally, a 1kΩ pull-up resistor should be connected between the DE pin and VCC to ensure the transmitter is enabled.
  • The maximum cable length supported by the MAX3093EESE+T depends on the data rate and cable characteristics. As a general rule, the maximum cable length is approximately 4000 feet (1219 meters) at a data rate of 10Mbps, and 1000 feet (305 meters) at a data rate of 35Mbps.
  • To handle hot-swapping or hot-plugging, it's recommended to use a external 1kΩ pull-down resistor on the DE pin to ensure the transmitter is disabled during power-up. Additionally, a 100nF capacitor can be connected between the VCC and GND pins to filter out power-up transients.
  • The recommended power-up sequence for the MAX3093EESE+T is to apply VCC first, followed by the logic inputs (e.g. DE, RE, and DI). This ensures that the device is properly initialized and configured before transmitting data.
