MAX3094EEUE+ - Analog Devices

Description: MAX3094EEUE+, Quad Line Receiver, RS-485, RS-422, 4 10Mbit/s Differential 3 → 3.6 V 16-Pin TSSOP U16+1

Download MAX3094EEUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

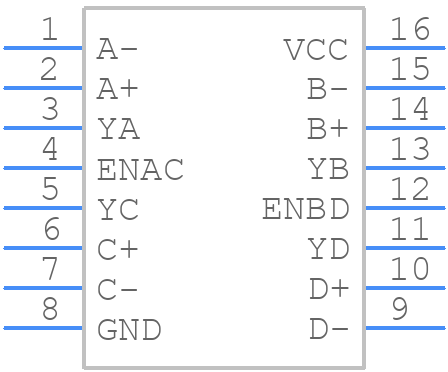

MAX3094EEUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3094EEUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16+1
click to zoom
3D Models
MAX3094EEUE+ - Analog Devices - 3D model - Small Outline Packages - U16+1
click to zoom

MAX3094EEUE+ Details

  • Manufacturer Part Number:

    MAX3094EEUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Level Input Current-Max:

    0.0002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    3.1 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0025 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    111 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3094EEUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3094EEUE+ involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the signal sources. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure reliable operation of the MAX3094EEUE+ in high-temperature environments, it is essential to provide adequate heat sinking, such as a thermal pad or a heat sink attached to the device's exposed pad. Additionally, the device should be operated within its recommended operating temperature range, and the power supply should be designed to minimize voltage drops and noise.
  • The MAX3094EEUE+ has built-in ESD protection, but it is still important to follow proper ESD handling procedures during device handling and PCB assembly. Additionally, the device's I/O pins should be protected from ESD events using external ESD protection devices, such as TVS diodes or ESD arrays, if the application requires it.
  • To troubleshoot issues with the MAX3094EEUE+, start by verifying the power supply and clock signals, and then check the device's output signals using an oscilloscope. If the issue persists, check the PCB layout and signal integrity, and ensure that the device is operated within its recommended operating conditions. If the issue still cannot be resolved, contact Analog Devices' technical support for further assistance.
  • When using the MAX3094EEUE+ in a redundant or fault-tolerant system, it is essential to ensure that the device is properly synchronized with the redundant or backup system. This may involve using a common clock source, and ensuring that the device's output signals are properly isolated or buffered to prevent faults from propagating between systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3094EEUE+ Overview

Use the download button to access the MAX3094EEUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
