MAX3094EEUE+T - Analog Devices

Description: RS-422/RS-485 Interface IC A +/- 15kV ESD-Protected, 10Mbps, 3V/5V, Low-Power Quad RS-422/RS-485Receivers

Download MAX3094EEUE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

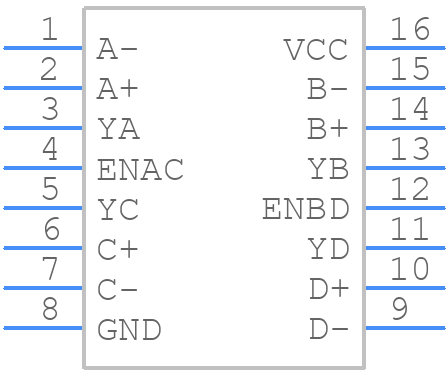

Symbol
MAX3094EEUE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3094EEUE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 TSSOP
click to zoom
3D Models
MAX3094EEUE+T - Analog Devices - 3D model - Small Outline Packages - 16 TSSOP
click to zoom

MAX3094EEUE+T Details

  • Manufacturer Part Number:

    MAX3094EEUE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.0025 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    111 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3094EEUE+T Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX3094EEUE+T is to keep the signal traces short and away from the power traces, use a solid ground plane, and add decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the RS-485 bus and to keep the cable length as short as possible.
  • To ensure reliable communication in a noisy industrial environment, use a shielded cable, implement error-checking mechanisms such as CRC or checksum, and consider using a repeater or an isolator to boost the signal and provide electrical isolation. Additionally, ensure that the MAX3094EEUE+T is properly terminated and that the bus is properly biased.
  • The maximum cable length supported by the MAX3094EEUE+T depends on the data rate and the cable characteristics. As a general rule, the maximum cable length is approximately 4000 feet (1219 meters) at a data rate of 250 kbps. However, this can be extended by using repeaters or by reducing the data rate.
  • The MAX3094EEUE+T can be configured for half-duplex or full-duplex operation by controlling the DE (driver enable) and RE (receiver enable) pins. For half-duplex operation, tie the DE and RE pins together and connect them to the microcontroller's transmit-enable signal. For full-duplex operation, connect the DE pin to the microcontroller's transmit-enable signal and the RE pin to the microcontroller's receive-enable signal.
  • The typical power consumption of the MAX3094EEUE+T is approximately 15 mA in active mode and 1 μA in shutdown mode. However, this can vary depending on the operating frequency, data rate, and other factors.
