MAX3095CSE+T - Analog Devices

Description: RS-422/RS-485 Interface IC 15kV ESD-Protected, 10Mbps, 3V/5V, Quad RS-422/RS-485 Receivers

Download MAX3095CSE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

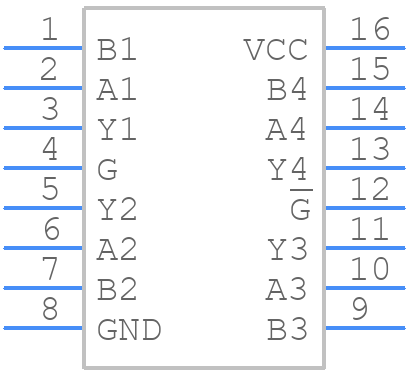

MAX3095CSE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3095CSE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16+5
click to zoom
3D Models
MAX3095CSE+T - Analog Devices - 3D model - Small Outline Packages - S16+5
click to zoom

MAX3095CSE+T Details

  • Manufacturer Part Number:

    MAX3095CSE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Level Input Current-Max:

    0.00025 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-423; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    98 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3095CSE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3095CSE+T involves keeping the signal traces short and away from the power traces, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce EMI.
  • To ensure proper termination, the MAX3095CSE+T requires a 120Ω differential termination resistor at the receiver end. This resistor should be placed as close to the receiver as possible to minimize signal reflections. Additionally, the transmitter should be AC-coupled to the receiver using a capacitor to block DC voltage.
  • The maximum cable length that can be used with the MAX3095CSE+T depends on the specific application and the type of cable used. However, as a general rule, the MAX3095CSE+T can support cable lengths of up to 100 meters at data rates of up to 100Mbps. For longer cable lengths, repeaters or signal conditioners may be required to maintain signal integrity.
  • To troubleshoot common issues with the MAX3095CSE+T, start by checking the power supply voltage and ensuring that it is within the recommended range. Next, verify that the device is properly configured and that the transmit and receive pins are correctly connected. Use an oscilloscope to check the signal quality and look for signs of signal degradation or distortion. If the issue persists, try replacing the device or checking for any damage to the PCB or components.
  • Yes, the MAX3095CSE+T can be used in harsh industrial environments, but precautions should be taken to ensure reliable operation. The device is rated for operation in temperatures ranging from -40°C to +85°C, but it may require additional heat sinking or cooling in high-temperature environments. Additionally, the device should be protected from moisture, vibration, and electromagnetic interference (EMI) using appropriate packaging and shielding.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3095CSE+T Overview

Use the download button to access the MAX3095CSE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
