MAX3096CSE+ - Analog Devices

Description: MAX3096CSE+, Quad Line Receiver, RS-485, RS-422, 4 10Mbit/s Differential 3.3 V 16-Pin SOIC

Download MAX3096CSE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

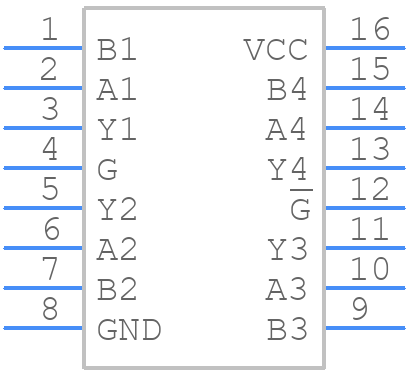

MAX3096CSE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3096CSE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16+5
click to zoom
3D Models
MAX3096CSE+ - Analog Devices - 3D model - Small Outline Packages - S16+5
click to zoom

MAX3096CSE+ Details

  • Manufacturer Part Number:

    MAX3096CSE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-485; EIA-422

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    127 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3096CSE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3096CSE+ involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the signal sources. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure reliable operation of the MAX3096CSE+ in high-temperature environments, it is essential to provide adequate heat sinking, such as a thermal pad or a heat sink attached to the device's exposed pad. Additionally, the device should be operated within its specified temperature range, and the power dissipation should be kept within the recommended limits.
  • The maximum cable length that can be driven by the MAX3096CSE+ depends on the cable characteristics, such as the capacitance and resistance per unit length. As a general guideline, the MAX3096CSE+ can drive cables up to 100 meters long, but this may vary depending on the specific application and cable characteristics.
  • To troubleshoot issues with the MAX3096CSE+, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the signal integrity and ensure that the input signals are within the specified range. Use an oscilloscope to verify the output signal and check for any signs of distortion or noise. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the MAX3096CSE+ can be used in a redundant or fault-tolerant system. The device's built-in fault detection and reporting features, such as the FAULT pin, can be used to detect and respond to faults in the system. Additionally, the device's high-speed signaling capabilities make it suitable for use in high-availability systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3096CSE+ Overview

Use the download button to access the MAX3096CSE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers
