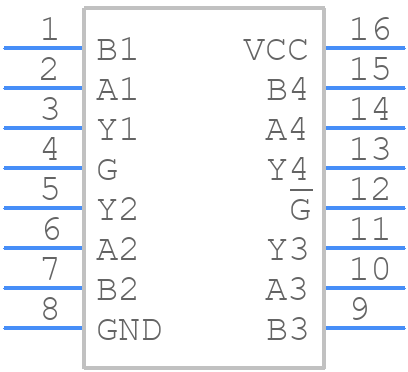

MAX3096EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3096EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 21-0055_QSOP16
click to zoom
3D Models
MAX3096EEE+ - Analog Devices - 3D model - Small Outline Packages - MAX 21-0055_QSOP16
click to zoom

MAX3096EEE+ Details

  • Manufacturer Part Number:

    MAX3096EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-485; EIA-422

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    127 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3096EEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3096EEE+ involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the signal sources. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure reliable operation of the MAX3096EEE+ in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device's power dissipation should be kept within the recommended limits, and the device should be operated within its specified temperature range.
  • When using the MAX3096EEE+ in a system with multiple voltage domains, it's essential to ensure that the device's power supply voltage (VCC) is within the recommended range and that the voltage domains are properly isolated. Additionally, the device's input signals should be level-shifted or buffered to ensure compatibility with the different voltage domains. It's also important to consider the device's power sequencing and startup requirements to avoid any potential issues.
  • To troubleshoot issues with the MAX3096EEE+, start by verifying that the device is properly powered and that the input signals are within the recommended range. Check the device's output signals using an oscilloscope or logic analyzer to identify any anomalies. If the issue persists, check the PCB layout and ensure that it meets the recommended layout guidelines. If the issue is still not resolved, consult the device's datasheet and application notes for further guidance or contact Analog Devices' technical support.
  • The MAX3096EEE+ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during device handling and PCB assembly. This includes using ESD-safe materials, grounding oneself before handling the device, and avoiding direct contact with the device's pins. Additionally, the device's input signals should be protected using external ESD protection devices or TVS diodes to prevent damage from electrostatic discharge.
