MAX3096ESE+T - Analog Devices

Description: RS-422/RS-485 Interface IC 15kV ESD-Protected, 10Mbps, 3V/5V, Quad RS-422/RS-485 Receivers

Download MAX3096ESE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

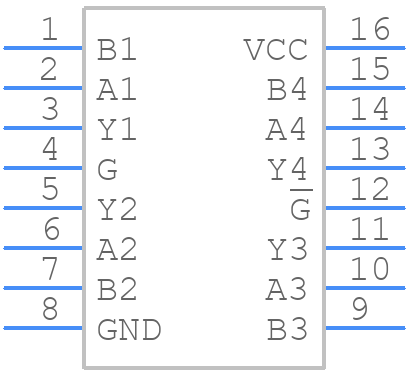

MAX3096ESE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3096ESE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16+5-2020
click to zoom
3D Models
MAX3096ESE+T - Analog Devices - 3D model - Small Outline Packages - S16+5-2020
click to zoom

MAX3096ESE+T Details

  • Manufacturer Part Number:

    MAX3096ESE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Level Input Current-Max:

    0.00025 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-423; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    123 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3096ESE+T Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX3096ESE+T is to keep the signal traces short and away from the power traces, use a solid ground plane, and place the device close to the signal source. Additionally, use a common-mode choke or ferrite bead to filter out high-frequency noise on the signal lines.
  • To ensure reliable operation of the MAX3096ESE+T in high-temperature environments, make sure to follow the recommended operating temperature range of -40°C to +85°C, and consider using a heat sink or thermal pad to dissipate heat. Also, ensure that the device is properly soldered and the PCB is designed to handle thermal stresses.
  • The maximum cable length that can be used with the MAX3096ESE+T depends on the specific application and the type of cable used. As a general rule, the cable length should be kept as short as possible to minimize signal attenuation and noise pickup. A good starting point is to use cables with a maximum length of 1 meter to 2 meters.
  • Yes, the MAX3096ESE+T can be used in applications that require isolation between the signal lines. The device has a galvanic isolation barrier between the input and output stages, which provides electrical isolation up to 2500 Vrms. However, it's essential to follow proper PCB layout and design practices to maintain the isolation barrier.
  • To troubleshoot issues with the MAX3096ESE+T, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, verify that the input signal is within the specified range and that the device is properly configured. Use an oscilloscope to check the signal waveform and look for signs of distortion or noise. If the issue persists, try swapping out the device or checking the PCB layout for any potential issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3096ESE+T Overview

Use the download button to access the MAX3096ESE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
