Part Image

MAX3098EACEE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3098EACEE+ - Line Receiver RS422, RS485, 3V-5.5V supply, QSOP-16

Download MAX3098EACEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

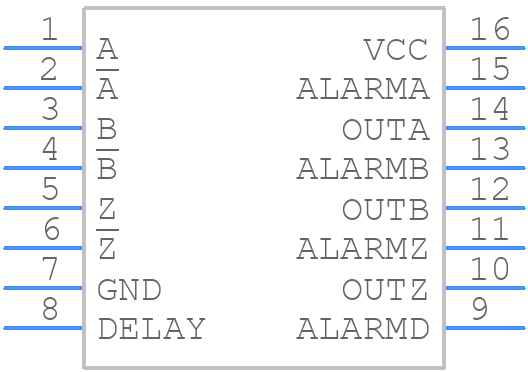

Symbol
MAX3098EACEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3098EACEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP16-
click to zoom
3D Models
MAX3098EACEE+ - Analog Devices - 3D model - Small Outline Packages - QSOP16-
click to zoom

MAX3098EACEE+ Details

  • Manufacturer Part Number:

    MAX3098EACEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-08-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    85 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3098EACEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3098EACEE+ involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To ensure reliable operation in high-temperature environments, make sure to follow the recommended operating conditions, use a heat sink if necessary, and consider using a thermal interface material to improve heat transfer. Also, ensure that the device is not exposed to temperatures above the recommended maximum junction temperature (Tj) of 150°C.
  • The maximum cable length supported by the MAX3098EACEE+ depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters at data rates up to 100 Mbps. However, it's recommended to consult the application note AN-1149 for more detailed information and to perform signal integrity simulations to determine the maximum cable length for a specific application.
  • Yes, the MAX3098EACEE+ can be used in a redundant or fault-tolerant system. The device has built-in features such as hot swap and fault detection, which make it suitable for use in high-reliability applications. However, it's essential to consult the datasheet and application notes to ensure that the device is used correctly in such systems.
  • To troubleshoot common issues with the MAX3098EACEE+, start by checking the power supply and signal connections, ensuring that the device is properly configured and that the cable is not damaged. Use an oscilloscope to check the signal integrity and look for signs of signal degradation or noise. Consult the datasheet and application notes for more detailed troubleshooting guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3098EACEE+ Overview

Use the download button to access the MAX3098EACEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
