MAX3098EAEEE+ - Analog Devices

Description: Triple Receiver RS-422/RS-485 16-Pin QSOP

Download MAX3098EAEEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

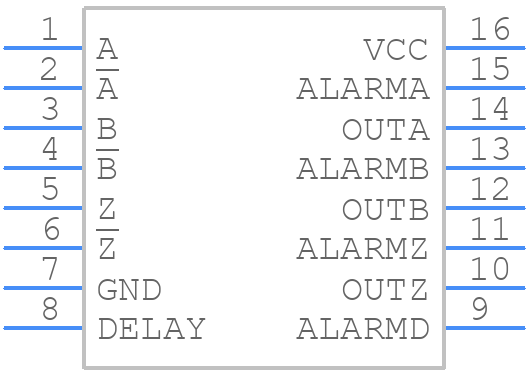

MAX3098EAEEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3098EAEEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+1
click to zoom
3D Models
MAX3098EAEEE+ - Analog Devices - 3D model - Small Outline Packages - E16+1
click to zoom

MAX3098EAEEE+ Details

  • Manufacturer Part Number:

    MAX3098EAEEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-08-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    85 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3098EAEEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3098EAEEE+ involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the signal sources. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure reliable operation of the MAX3098EAEEE+ in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device's junction temperature below the recommended maximum of 150°C. Additionally, the device's power consumption should be kept within the recommended specifications to prevent overheating.
  • The maximum cable length supported by the MAX3098EAEEE+ depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at data rates of up to 100 Mbps. For longer cable lengths or higher data rates, repeaters or active cables may be required to maintain signal integrity.
  • Yes, the MAX3098EAEEE+ can be used in redundant or fault-tolerant systems. The device's built-in fault detection and reporting capabilities make it suitable for use in high-reliability applications. Additionally, the device's hot-swap capability allows it to be replaced or added to a system without interrupting operation.
  • Common issues with the MAX3098EAEEE+ can be troubleshooted by checking the device's power supply, signal integrity, and PCB layout. Additionally, the device's built-in diagnostic capabilities, such as its fault detection and reporting features, can be used to identify and isolate issues. It is also recommended to consult the device's datasheet and application notes for troubleshooting guidance.
