MAX3098EAESE+ - Analog Devices

Description: RS422/RS485 RX, 32MBPS, 5.5V, NSOIC-16

Download MAX3098EAESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

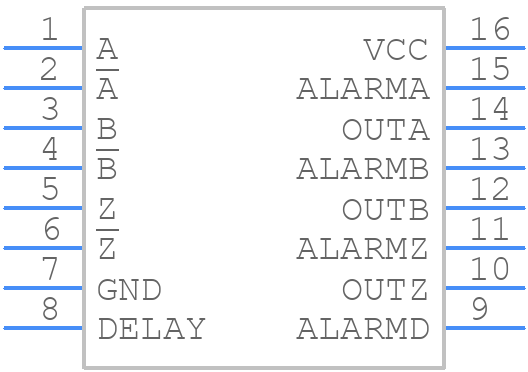

MAX3098EAESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3098EAESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16+5
click to zoom
3D Models
MAX3098EAESE+ - Analog Devices - 3D model - Small Outline Packages - S16+5
click to zoom

MAX3098EAESE+ Details

  • Manufacturer Part Number:

    MAX3098EAESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-08-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    85 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3098EAESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3098EAESE+ involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To ensure reliable operation in high-temperature environments, make sure to follow the recommended operating conditions, use a heat sink if necessary, and consider using a thermal interface material to improve heat transfer. Also, ensure that the device is not exposed to temperatures above the recommended maximum junction temperature (Tj) of 150°C.
  • The maximum cable length supported by the MAX3098EAESE+ depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters at data rates up to 100 Mbps. However, it's recommended to consult the application note AN-1149 for more detailed information and to perform tests to determine the maximum cable length for a specific application.
  • The MAX3098EAESE+ is designed to operate with a single 3.3V or 5V supply voltage. While it's possible to use the device with a non-standard voltage supply, it's not recommended as it may affect the device's performance and reliability. If a non-standard voltage supply is required, consult with Analog Devices Inc. for guidance and ensure that the device is operated within its recommended operating conditions.
  • To troubleshoot issues with the MAX3098EAESE+, start by consulting the datasheet and application notes for guidance. Check the device's power supply, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the device's signals. If the issue persists, contact Analog Devices Inc. for technical support and consider using their evaluation boards and development tools to aid in debugging.
