MAX3100EPD+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3100EPD+ - UART, SPI/MICROWIRE, 3100, DIP14

Download MAX3100EPD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

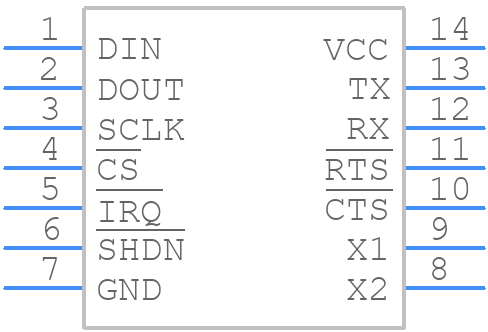

Symbol
MAX3100EPD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3100EPD+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MAX3100EPD+
click to zoom
3D Models
MAX3100EPD+ - Analog Devices - 3D model - Dual-In-Line Packages - MAX3100EPD+
click to zoom

MAX3100EPD+ Details

  • Manufacturer Part Number:

    MAX3100EPD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-PDIP-300_MIL

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    1997-07-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    3.6864 MHz

  • Communication Protocol:

    ASYNC, BIT

  • Data Transfer Rate-Max:

    0.028125 MBps

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

MAX3100EPD+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX3100EPD+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the MAX3100EPD+ and the crystal oscillator. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable communication with the MAX3100EPD+ in noisy environments, it is recommended to use a shielded cable, twisted pair wires, and a common-mode choke to reduce electromagnetic interference (EMI). Additionally, implementing error-checking mechanisms such as checksums or cyclic redundancy checks (CRCs) can help detect and correct errors caused by noise.
  • The MAX3100EPD+ has an operating temperature range of -40°C to +85°C. However, it is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • To configure the MAX3100EPD+ for low-power operation, it is recommended to use the device's power-down mode, which reduces the current consumption to less than 1µA. Additionally, the device's clock frequency can be reduced to minimize power consumption. It is also recommended to use a low-power crystal oscillator and to minimize the use of external components.
  • The MAX3100EPD+ supports data rates up to 250kbps. However, the actual data rate may be limited by the specific application and the quality of the communication channel.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3100EPD+ Overview

Use the download button to access the MAX3100EPD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Serial IO/Communication Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
