MAX3107EAG+ - Analog Devices

Description: Maxim,MAX3107EAG+ Maxim MAX3107EAG+ Interface RS232, RS485 24MBps, 2.35 ??? 3.6 V, 24-Pin, SSOP

Download MAX3107EAG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

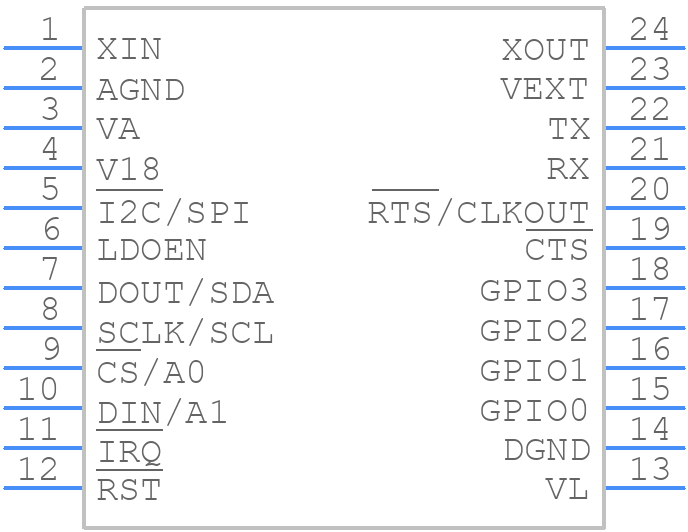

MAX3107EAG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3107EAG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24 SSOP
click to zoom
3D Models
MAX3107EAG+ - Analog Devices - 3D model - Small Outline Packages - 24 SSOP
click to zoom

MAX3107EAG+ Details

  • Manufacturer Part Number:

    MAX3107EAG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-SSOP-5.3_MM

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2009-12-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Boundary Scan:

    NO

  • Communication Protocol:

    ASYNC, BIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Serial I/Os:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

MAX3107EAG+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX3107EAG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the crystal oscillator and to use a shielded cable for the RS-232 interface.
  • To ensure reliable operation of the MAX3107EAG+ in noisy environments, it's recommended to use a shielded enclosure, add EMI filters to the power supply and signal lines, and use a common-mode choke to reduce electromagnetic interference. Additionally, it's recommended to use a low-pass filter on the RS-232 interface to reduce high-frequency noise.
  • The maximum cable length supported by the MAX3107EAG+ depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is limited to 50 feet at 115.2 kbps, 20 feet at 230.4 kbps, and 10 feet at 460.8 kbps. However, it's recommended to use a cable length of 10 feet or less to ensure reliable operation.
  • To configure the MAX3107EAG+ for low-power operation, it's recommended to use the power-down mode, which reduces the power consumption to 1.5 μA. Additionally, it's recommended to use a low-power oscillator, reduce the baud rate, and use a low-power microcontroller or processor.
  • The recommended crystal oscillator frequency for the MAX3107EAG+ is 14.7456 MHz or 24 MHz. However, the device can operate with a crystal oscillator frequency between 10 MHz and 30 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3107EAG+ Overview

Use the download button to access the MAX3107EAG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Serial IO/Communication Controllers
