MAX3107ETG+ - Analog Devices

Description: SPI/I2C UART with 128-Word FIFOs and Internal Oscillator

Download MAX3107ETG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

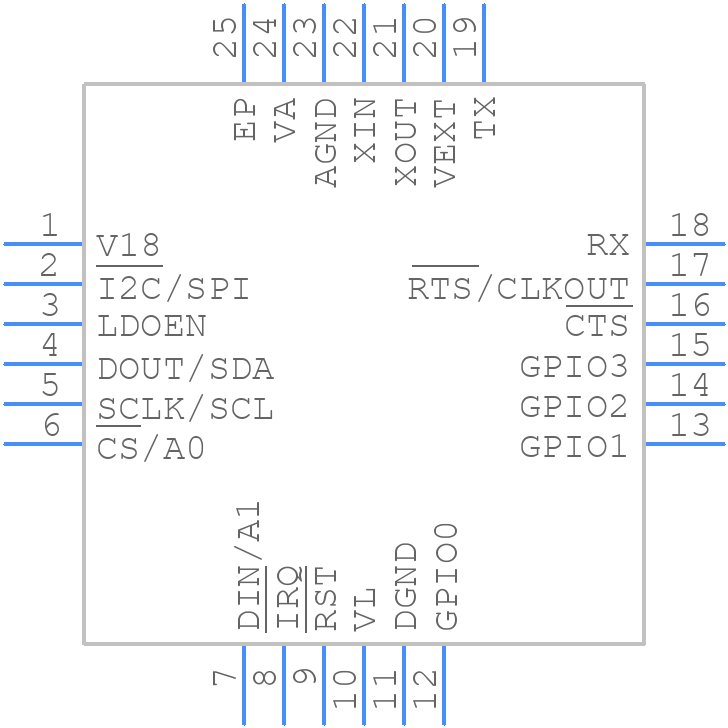

MAX3107ETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3107ETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-LEAD QFN
click to zoom
3D Models
MAX3107ETG+ - Analog Devices - 3D model - Quad Flat No-Lead - 24-LEAD QFN
click to zoom

MAX3107ETG+ Details

  • Manufacturer Part Number:

    MAX3107ETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2009-12-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Boundary Scan:

    NO

  • Communication Protocol:

    ASYNC, BIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Serial I/Os:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

MAX3107ETG+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX3107ETG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the device away from high-frequency noise sources and to use a low-ESR capacitor for the VCC bypass.
  • To ensure reliable communication with the MAX3107ETG+ in noisy environments, use a robust communication protocol such as UART with error detection and correction, implement noise filtering on the RX and TX lines, and consider using a shielded cable or a twisted pair for the communication lines.
  • The maximum cable length supported by the MAX3107ETG+ depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is around 100 feet at 9600bps and 10 feet at 115200bps. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.
  • During power-up and power-down sequences, it's recommended to sequence the power supplies to the MAX3107ETG+ to prevent damage to the device. The VCC supply should be powered up before the VIO supply, and the VIO supply should be powered down before the VCC supply. Additionally, it's recommended to use a power-on reset circuit to ensure that the device is properly reset during power-up.
  • The MAX3107ETG+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device junction temperature below 120°C. This can be achieved by using a heat sink, reducing the power consumption, and ensuring good airflow around the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3107ETG+ Overview

Use the download button to access the MAX3107ETG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Serial IO/Communication Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
