MAX3107ETG+T - Analog Devices

Description: SPI/I2C UART with 128-Word FIFOs and Internal Oscillator

Download MAX3107ETG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

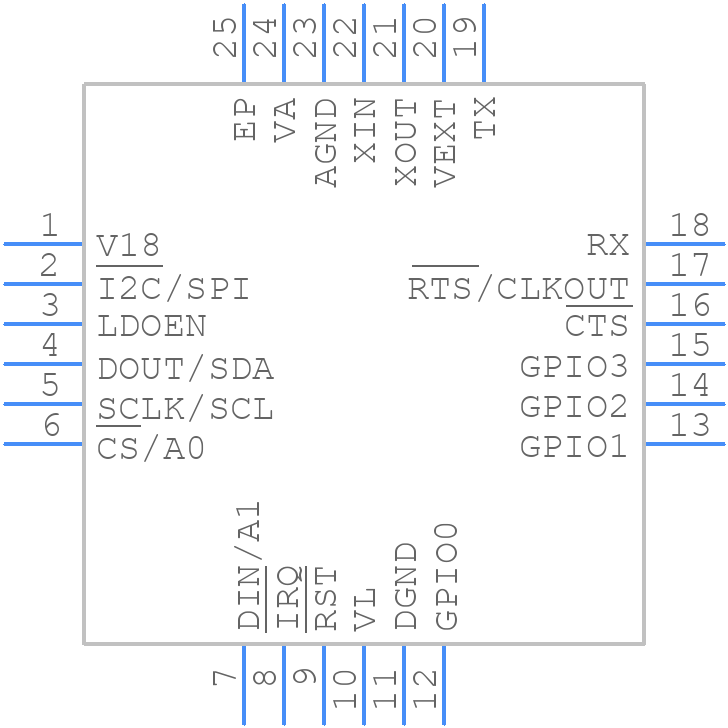

Symbol
MAX3107ETG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3107ETG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 PIN QFN EP-+-+
click to zoom
3D Models
MAX3107ETG+T - Analog Devices - 3D model - Quad Flat No-Lead - 24 PIN QFN EP-+-+
click to zoom

MAX3107ETG+T Details

  • Manufacturer Part Number:

    MAX3107ETG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2009-12-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Boundary Scan:

    NO

  • Communication Protocol:

    ASYNC, BIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    24

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

MAX3107ETG+T Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX3107ETG+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the crystal oscillator and use a shielded cable for the RS-232 interface to reduce electromagnetic interference (EMI).
  • The MAX3107ETG+T can be configured for a specific baud rate and data format using the UART control registers. The device supports a range of baud rates from 50bps to 921.6kbps, and data formats including 5, 6, 7, or 8 data bits, odd, even, or no parity, and 1 or 2 stop bits. The configuration is done through the UART control registers, which can be accessed through the device's serial interface.
  • The maximum cable length supported by the MAX3107ETG+T for reliable RS-232 communication depends on the baud rate and the quality of the cable. As a general rule, the maximum cable length decreases as the baud rate increases. For example, at 9600bps, the maximum cable length is approximately 50 feet (15 meters), while at 115.2kbps, the maximum cable length is approximately 10 feet (3 meters).
  • The MAX3107ETG+T provides several error detection mechanisms, including framing error detection, overrun error detection, and parity error detection. When an error occurs, the device sets the corresponding error flag in the UART status register. The host processor can then read the error flag and take appropriate action, such as retrying the transmission or requesting retransmission of the data.
  • Yes, the MAX3107ETG+T can be used in a multi-drop RS-232 configuration. In a multi-drop configuration, multiple devices are connected to a single RS-232 bus, and each device is assigned a unique address. The MAX3107ETG+T supports multi-drop operation through its UART control registers, which allow the device to be configured for a specific address and to respond to address-specific commands.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3107ETG+T Overview

Use the download button to access the MAX3107ETG+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Serial IO/Communication Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
