MAX31180AUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX31180AUA+ - Clock Generator, 134 MHz, 3 V to 3.6 V, 1 Output, µSOP-8

Download MAX31180AUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

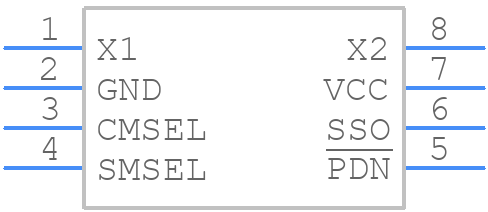

MAX31180AUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31180AUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX31180AUA+ - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX31180AUA+ Details

  • Manufacturer Part Number:

    MAX31180AUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    USOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-12-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    134 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    33.4 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

MAX31180AUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31180AUA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the UART signals in noisy environments, it's recommended to use a UART signal conditioner or a UART isolator, and to implement proper EMI filtering and shielding on the PCB. Additionally, using a differential UART signal and a common-mode choke can help to reduce noise and improve signal integrity.
  • The maximum cable length supported by the MAX31180AUA+ depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is limited to 100 meters at 115.2 kbps, 50 meters at 230.4 kbps, and 20 meters at 460.8 kbps. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • To configure the MAX31180AUA+ for RS-485 mode, you need to connect the DE (driver enable) pin to a logic high, connect the RE (receiver enable) pin to a logic low, and connect the DI (driver input) pin to the transmit data signal. Additionally, you need to configure the UART mode to 8-bit, no parity, and 1 stop bit, and set the baud rate to the desired value.
  • The recommended power-up sequence for the MAX31180AUA+ is to apply the power supply voltage (VCC) first, followed by the crystal oscillator clock signal (XTAL). The power-up sequence should be controlled to ensure that the crystal oscillator is stable before the device is enabled.
