MAX3120ESA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3120ESA+ - IRDA INFRARED TRANSCEIVER, NSOIC-8

Download MAX3120ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

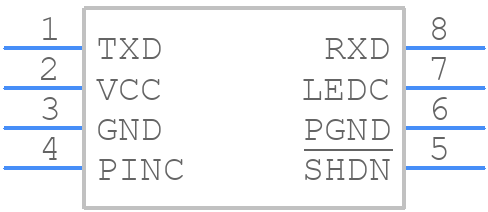

MAX3120ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3120ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX3120ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX3120ESA+ Details

  • Manufacturer Part Number:

    MAX3120ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1998-10-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX3120ESA+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX3120ESA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, use short and direct traces for the clock and data lines, and avoid running them near noise-sensitive areas.
  • To ensure reliable operation of the MAX3120ESA+ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its specified operating temperature range.
  • When using the MAX3120ESA+ in a system with multiple voltage domains, it's crucial to ensure that the device is powered from a stable and well-regulated voltage source. Additionally, consider using level translators or voltage regulators to interface with other voltage domains, and ensure that the device's input and output voltage levels are within the specified ranges.
  • To troubleshoot issues with the MAX3120ESA+, start by verifying the device's power supply and clock signals. Check for proper termination and signal integrity on the data lines, and ensure that the device is properly configured and initialized. Use oscilloscopes and logic analyzers to debug the signals, and consult the datasheet and application notes for guidance.
  • When using the MAX3120ESA+ in a system with high-speed signals, it's essential to consider signal integrity and transmission line effects. Use controlled impedance traces, and terminate the signals properly to minimize reflections and ringing. Additionally, consider using signal conditioning circuits or equalization techniques to compensate for signal degradation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3120ESA+ Overview

Use the download button to access the MAX3120ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
