MAX31328NELB+ - Analog Devices

Description: ?3.5ppm, I2C RTC with Integrated Crystal and Power Management

Download MAX31328NELB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

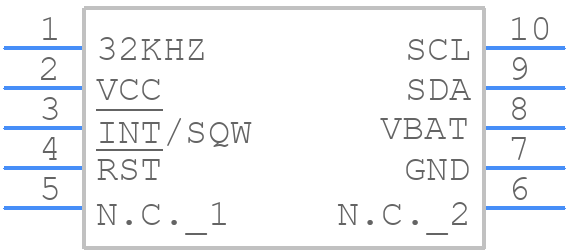

Symbol
MAX31328NELB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31328NELB+ - Analog Devices PCB footprint - Other - Other - MAX31328NELB+-3
click to zoom
3D Models
MAX31328NELB+ - Analog Devices - 3D model - Other - MAX31328NELB+-3
click to zoom

MAX31328NELB+ Details

  • Manufacturer Part Number:

    MAX31328NELB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LGA-5X5X1.25

  • Package Description:

    LGA-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LGA-5X5X1.25

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-03-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    S-PBGA-N10

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    LGA10.5X5,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Seated Height-Max:

    1.35 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time-Min:

    SECONDS

  • Volatile:

    NO

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

MAX31328NELB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31328NELB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to keep the signal traces short and direct.
  • To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low ppm error, and to calibrate the RTC regularly. Additionally, the device should be operated within the recommended temperature range, and the power supply should be stable and noise-free.
  • The maximum frequency of the clock output of the MAX31328NELB+ is 32.768 kHz, which is the typical frequency of a real-time clock.
  • Yes, the MAX31328NELB+ can be used in a battery-powered device. It has a low power consumption of 1.2 μA in the timekeeping mode, making it suitable for battery-powered applications. However, it's essential to ensure that the power supply is stable and noise-free to maintain the accuracy of the RTC.
  • The MAX31328NELB+ can be programmed using the I2C interface. The device has a set of registers that can be accessed and modified using the I2C protocol. The programming involves setting the desired values for the clock, calendar, and alarm functions, as well as configuring the device's operating modes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX31328NELB+ Overview

Use the download button to access the MAX31328NELB+ schematic symbol, PCB footprint, and 3D model.
