MAX31328NELB+T - Analog Devices

Description: ?3.5ppm, I2C RTC with Integrated Crystal and Power Management

Download MAX31328NELB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

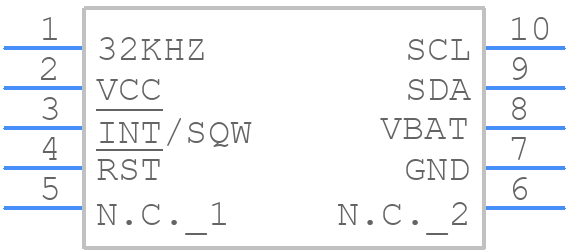

Symbol
MAX31328NELB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31328NELB+T - Analog Devices PCB footprint - Other - Other - MAX31328NELB+T-3
click to zoom
3D Models
MAX31328NELB+T - Analog Devices - 3D model - Other - MAX31328NELB+T-3
click to zoom

MAX31328NELB+T Details

  • Manufacturer Part Number:

    MAX31328NELB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LGA-5X5X1.25

  • Package Description:

    LGA-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LGA-5X5X1.25

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-03-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    S-PBGA-N10

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    LGA10.5X5,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Seated Height-Max:

    1.35 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time-Min:

    SECONDS

  • Volatile:

    NO

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

MAX31328NELB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31328NELB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to place the device close to the crystal oscillator and use a low-ESR capacitor for the VCC pin.
  • To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low ppm error, and to calibrate the RTC regularly using an external time reference. Additionally, the device should be operated within the recommended temperature range, and the power supply should be stable and noise-free.
  • The maximum frequency of the clock output of the MAX31328NELB+T is 32.768 kHz, which is the typical frequency of a watch crystal oscillator.
  • Yes, the MAX31328NELB+T can be used in a battery-powered device. It has a low power consumption of 1.2 μA in the shutdown mode, making it suitable for battery-powered applications. However, it's essential to ensure that the power supply is stable and noise-free to maintain the accuracy of the RTC.
  • The MAX31328NELB+T can be interfaced with a microcontroller using the I2C or SPI interface. The device has a dedicated pin for the interface selection, and the communication protocol can be selected using the interface selection pin. The microcontroller can read and write data to the device using the selected interface.
