MAX31329ELB+T - Analog Devices

Description: Real Time Clock (RTC) IC Clock/Calendar 64 B I²C 10-LLGA

Download MAX31329ELB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

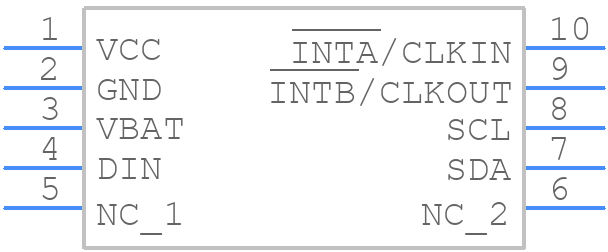

MAX31329ELB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31329ELB+T - Analog Devices PCB footprint - Other - Other - L1055M+2C_2024
click to zoom
3D Models
MAX31329ELB+T - Analog Devices - 3D model - Other - L1055M+2C_2024
click to zoom

MAX31329ELB+T Details

  • Manufacturer Part Number:

    MAX31329ELB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    10-LGA-5X5X1.25

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LGA-5X5X1.25

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-09-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

MAX31329ELB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31329ELB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the clock signal traces.
  • To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low ppm error, and to calibrate the RTC regularly. Additionally, the device should be operated within the recommended temperature range, and the power supply should be stable and noise-free.
  • The maximum frequency of the clock output of the MAX31329ELB+T is 32.768 kHz, which is the typical frequency of a real-time clock crystal oscillator.
  • Yes, the MAX31329ELB+T can be used in a battery-powered device. It has a low power consumption of 1.2 μA in the timekeeping mode, making it suitable for battery-powered applications. However, it's essential to ensure that the power supply is stable and noise-free to maintain the accuracy of the RTC.
  • The MAX31329ELB+T can be interfaced with a microcontroller using the I2C or SPI interface. The device has a dedicated pin for the clock signal, and the data can be transferred using the I2C or SPI protocol. The microcontroller can read the time and date from the MAX31329ELB+T and use it for various applications.
