MAX31331TETB+T - Analog Devices

Description: Ultra-Low power 12C Real Time clock w/ power management in TDFN

Download MAX31331TETB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

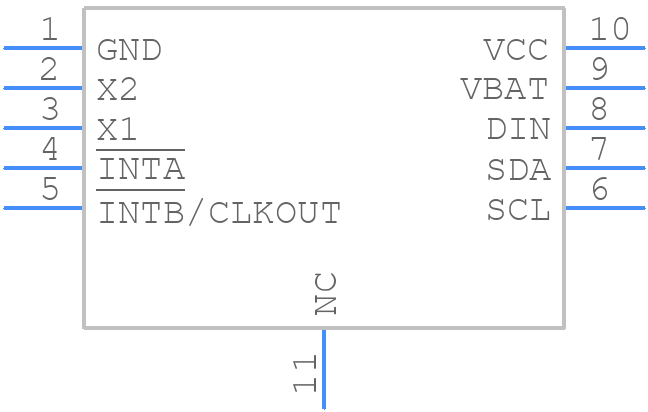

MAX31331TETB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX31331TETB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C
click to zoom
3D Models
MAX31331TETB+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1C
click to zoom

MAX31331TETB+T Details

  • Manufacturer Part Number:

    MAX31331TETB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2022-04-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Equivalence Code:

    SOLCC10,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    YES

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

MAX31331TETB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX31331TETB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to place the device close to the crystal oscillator and use a low-ESR capacitor for the VCC pin.
  • To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low frequency tolerance, and to calibrate the RTC regularly. Additionally, the device should be operated within the recommended temperature range, and the power supply should be stable and noise-free.
  • The maximum frequency of the clock output of the MAX31331TETB+T is 32.768 kHz, which is the typical frequency of a watch crystal oscillator.
  • Yes, the MAX31331TETB+T is suitable for battery-powered devices due to its low power consumption. It has a typical operating current of 1.2 μA and a shutdown current of 0.1 μA, making it ideal for battery-powered applications.
  • The MAX31331TETB+T can be interfaced with a microcontroller using the I2C or SPI interface. The device has a dedicated pin for the interface selection, and the microcontroller can be connected to the device using a standard I2C or SPI bus configuration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX31331TETB+T Overview

Use the download button to access the MAX31331TETB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX31, or try a keyword search, such as Timers or RTCs
