MAX3162CAI+ - Analog Devices

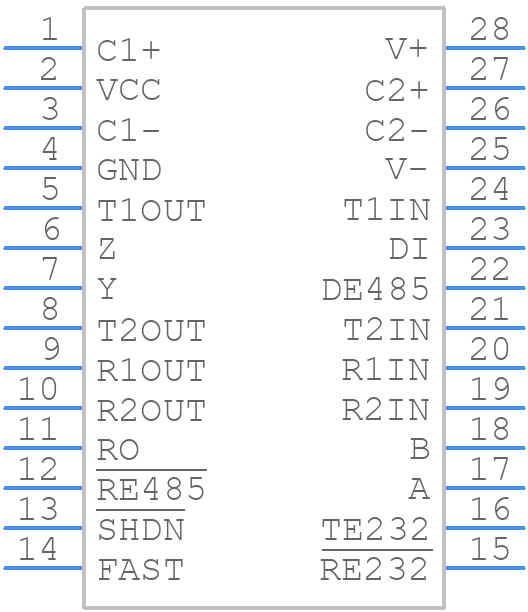

MAX3162CAI+ Details

• Manufacturer Part Number:

  MAX3162CAI+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  28-SSOP-5.3_MM

• Package Description:

  ROHS COMPLIANT, SSOP-28

• Pin Count:

  28

• Manufacturer Package Code:

  28-SSOP-5.3_MM

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2000-09-23

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  DELAYS MEASURED IN EIA-422, EIA-485 MODE

• Differential Output:

  YES

• Driver Number of Bits:

  2

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-485; EIA-422; EIA-232

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  10.2 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  28

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  1.5 V

• Output Low Current-Max:

  0.0025 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP28,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  150 ns

• Receiver Number of Bits:

  2

• Seated Height-Max:

  1.99 mm

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  800 ns

• Width:

  5.29 mm
