MAX320CSA+ - Analog Devices

Description: MAX320CSA+, Analogue SPST Switch Dual SPST, 8-Pin, SOIC, 2

Download MAX320CSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

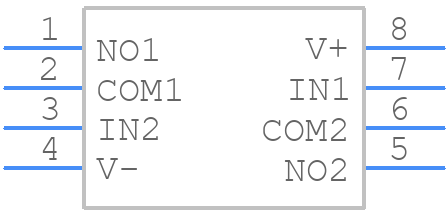

MAX320CSA+ - Analog Devices - PCB symbol
