MAX3222CUP+ - Analog Devices

Description: Maxim MAX3222CUP+, Line Transceiver, EIA/TIA-232/ EIA/TIA-562/ RS-232 2-TX 2-RX 2-TRX, 3 → 5.5 V, 20-Pin TSSOP

Download MAX3222CUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

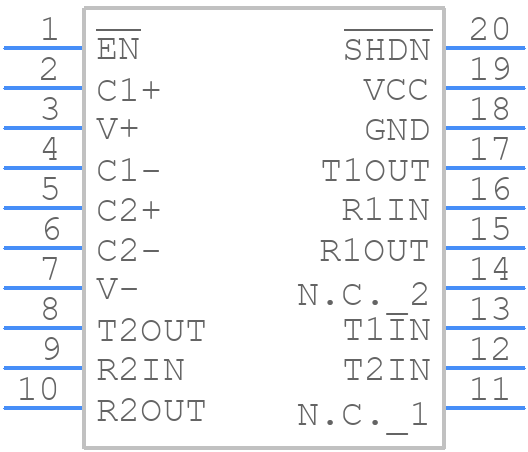

MAX3222CUP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3222CUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U20+2
click to zoom
3D Models
MAX3222CUP+ - Analog Devices - 3D model - Small Outline Packages - U20+2
click to zoom

MAX3222CUP+ Details

  • Manufacturer Part Number:

    MAX3222CUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-05-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3222CUP+ Frequently Asked Questions (FAQs)

  • The MAX3222CUP+ requires careful layout and placement to ensure proper operation. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the device close to the UART signals, using short traces, and avoiding vias under the device. Additionally, it's recommended to place a 0.1uF capacitor between VCC and GND as close to the device as possible.
  • The MAX3222CUP+ has a shutdown mode that can be controlled by the SHDN pin. To enter shutdown mode, the SHDN pin should be driven low. In shutdown mode, the device consumes very low power and the transmitter and receiver are disabled. When exiting shutdown mode, the device takes around 100us to recover and become operational again.
  • The MAX3222CUP+ supports data rates up to 1Mbps, making it suitable for high-speed UART applications. However, the actual data rate may be limited by the system's clock frequency, signal quality, and other factors.
  • The MAX3222CUP+ has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Additionally, it's recommended to use ESD protection devices, such as TVS diodes, on the UART signals to provide additional protection.
  • Yes, the MAX3222CUP+ is compatible with 3.3V systems. The device operates from a single 3.0V to 5.5V supply, making it suitable for use in 3.3V systems. However, it's important to ensure that the input signals are within the recommended voltage range to ensure proper operation.
