MAX3222ECAP+ - Analog Devices

Description: MAX3222ECAP+, Line Transceiver, EIA/TIA-232, RS-232, V.24, V.28 2 2 2 250 kbit/s, 3 → 5.5 V, 20-Pin SSOP

Download MAX3222ECAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

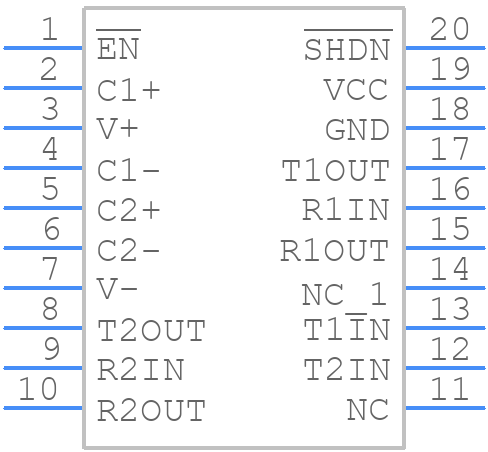

MAX3222ECAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3222ECAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 20 SSOP
click to zoom
3D Models
MAX3222ECAP+ - Analog Devices - 3D model - Small Outline Packages - MAX 20 SSOP
click to zoom

MAX3222ECAP+ Details

  • Manufacturer Part Number:

    MAX3222ECAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-03-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX3222ECAP+ Frequently Asked Questions (FAQs)

  • The MAX3222ECAP+ requires careful layout and placement to ensure proper operation. It is recommended to place the device close to the UART interface, use short traces, and avoid routing signals under the device. Additionally, decoupling capacitors should be placed as close as possible to the device's power pins.
  • The MAX3222ECAP+ has a shutdown mode that can be controlled by the SHDN pin. When SHDN is low, the device enters shutdown mode, reducing power consumption. However, it's essential to ensure that the device is properly configured before entering shutdown mode, and that the UART interface is properly terminated to prevent damage.
  • The MAX3222ECAP+ can support cable lengths up to 100 meters, depending on the baud rate and cable quality. However, it's recommended to use a cable with a characteristic impedance of 100 ohms and to follow proper termination and shielding techniques to ensure reliable operation.
  • Common issues with the MAX3222ECAP+ include data corruption, noise, and non-functional UART interfaces. To troubleshoot these issues, check the device's power supply, ensure proper termination and shielding, and verify that the UART interface is properly configured. Additionally, use oscilloscopes and logic analyzers to debug the signal quality and timing.
  • The MAX3222ECAP+ is designed to operate with a supply voltage range of 3.0V to 5.5V, making it compatible with both 3.3V and 5V systems. However, it's essential to ensure that the device's input and output levels are compatible with the system's voltage levels.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3222ECAP+ Overview

Use the download button to access the MAX3222ECAP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
