MAX3222EEAP+ - Analog Devices

Description: MAX3222EEAP+, Line Transceiver, EIA/TIA-232, RS-232, V.24, V.28 2 2 2 250 kbit/s, 3 → 5.5 V, 20-Pin SSOP

Download MAX3222EEAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

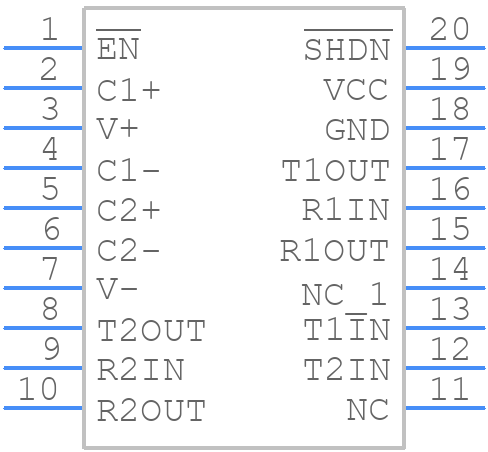

MAX3222EEAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3222EEAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 20 SSOP
click to zoom
3D Models
MAX3222EEAP+ - Analog Devices - 3D model - Small Outline Packages - MAX 20 SSOP
click to zoom

MAX3222EEAP+ Details

  • Manufacturer Part Number:

    MAX3222EEAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-03-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX3222EEAP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX3222EEAP+ involves keeping the device close to the UART interface, using short traces, and avoiding vias under the device. Additionally, it's recommended to use a solid ground plane and to decouple the VCC pin with a 0.1uF capacitor.
  • To ensure reliable operation of the MAX3222EEAP+ in noisy environments, it's recommended to use a common-mode choke or a ferrite bead on the RS-232 lines, and to add ESD protection devices such as TVS diodes or ESD arrays. Additionally, using a shielded cable and keeping the cable length as short as possible can also help.
  • The maximum cable length supported by the MAX3222EEAP+ depends on the baud rate and the cable quality. As a general rule, the maximum cable length is around 50 feet (15 meters) at 9600bps, and it decreases as the baud rate increases. It's recommended to use a high-quality cable with a shield and to keep the cable length as short as possible.
  • To troubleshoot issues with the MAX3222EEAP+, it's recommended to check the power supply voltage, the UART interface signals, and the RS-232 lines using an oscilloscope or a logic analyzer. Additionally, checking the device's temperature and ensuring that it's within the recommended operating range can also help identify the issue.
  • The MAX3222EEAP+ is compatible with 3.3V or 2.5V logic, but it requires a 5V power supply for the RS-232 transceivers. The device's VCC pin can be connected to a 3.3V or 2.5V power supply, but the V+ pin must be connected to a 5V power supply.
