MAX3225EAP+ - Analog Devices

Description: Maxim MAX3225EAP+, Line Transceiver 2-TX 2-RX, 3 → 5.5 V, 20-Pin SSOP

Download MAX3225EAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

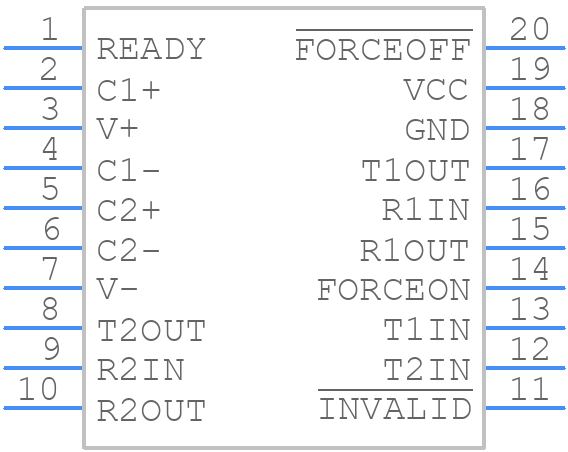

Symbol
MAX3225EAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3225EAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 SSOP
click to zoom
3D Models
MAX3225EAP+ - Analog Devices - 3D model - Small Outline Packages - 20 SSOP
click to zoom

MAX3225EAP+ Details

  • Manufacturer Part Number:

    MAX3225EAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-04-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX3225EAP+ Frequently Asked Questions (FAQs)

  • The MAX3225EAP+ is a high-speed device, so it's essential to follow good layout practices to minimize noise and ensure signal integrity. Place the device close to the connector, use short traces, and avoid vias. Keep the analog and digital grounds separate and connect them at a single point. Use a solid ground plane and decouple the power supply with a 0.1uF capacitor.
  • The SHDN pin is an active-low input that puts the device into a low-power shutdown mode when driven low. Connect the SHDN pin to a logic output or a pull-up resistor to ensure it's not floating. When in shutdown mode, the device consumes minimal power, but it's not recommended to leave it in this state for extended periods as it may affect the device's reliability.
  • The MAX3225EAP+ is a RS-232 transceiver, and the maximum cable length depends on the baud rate and the quality of the cable. As a general rule, the maximum cable length is around 50 feet (15 meters) at 115.2 kbps. However, it's recommended to use a cable with a shielded twisted pair and follow proper termination techniques to minimize signal degradation.
  • Yes, the MAX3225EAP+ is compatible with 3.3V systems. The device can operate from a single 3.3V power supply, and the input and output logic levels are compatible with 3.3V logic. However, ensure that the external components, such as the capacitors and resistors, are rated for 3.3V operation.
  • The MAX3225EAP+ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and installation. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from surge events. Ensure that the device is properly grounded and follow good PCB design practices to minimize the risk of ESD damage.
