MAX3225ECAP+T - Analog Devices

Description: RS-232 Interface IC +/-15kV ESD-Protected, 1 uA, 1Mbps, 3.0V to 5.5V, RS-232 Transceivers with AutoShutdown Plus

Download MAX3225ECAP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

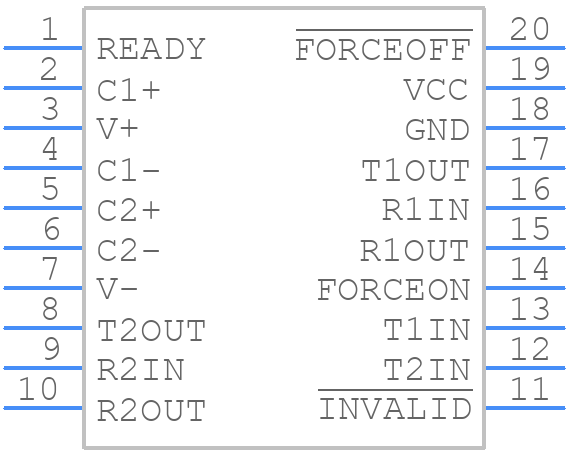

MAX3225ECAP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3225ECAP+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A20+1
click to zoom
3D Models
MAX3225ECAP+T - Analog Devices - 3D model - Small Outline Packages - A20+1
click to zoom

MAX3225ECAP+T Details

  • Manufacturer Part Number:

    MAX3225ECAP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Package Description:

    SSOP, SSOP20,.3

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX3225ECAP+T Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX3225ECAP+T involves keeping the transmitter and receiver circuits separate, using a solid ground plane, and minimizing the length of the traces between the IC and the connectors. It's also important to follow the guidelines for decoupling capacitors and ESD protection.
  • To ensure reliable operation of the MAX3225ECAP+T in a noisy environment, it's essential to follow proper PCB layout and routing guidelines, use adequate decoupling and filtering, and consider adding external ESD protection devices. Additionally, ensure that the power supply is clean and stable, and that the device is operated within its recommended specifications.
  • The maximum cable length supported by the MAX3225ECAP+T depends on the baud rate and the type of cable used. As a general rule, the maximum cable length decreases as the baud rate increases. For example, at 9600bps, the maximum cable length is approximately 100 meters, while at 115200bps, it's around 10 meters.
  • Yes, the MAX3225ECAP+T can be used in a multi-point or multi-drop configuration, but it requires additional external circuitry to ensure proper signal termination and biasing. It's essential to follow the guidelines provided in the datasheet and application notes to ensure reliable operation in such configurations.
  • To troubleshoot common issues with the MAX3225ECAP+T, start by verifying the power supply and clock signals, then check the signal integrity and termination on the transmitter and receiver sides. Use oscilloscopes or logic analyzers to capture and analyze the signal waveforms, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
