MAX3226CAE+ - Analog Devices

Description: Maxim MAX3226CAE+, Line Transceiver, 3 → 5.5 V, 16-Pin SSOP

Download MAX3226CAE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

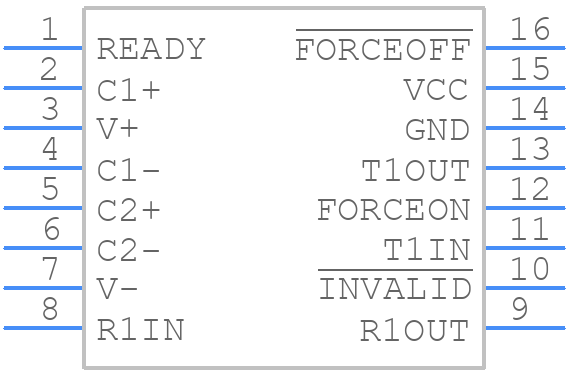

Symbol
MAX3226CAE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3226CAE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 16 SSOP
click to zoom
3D Models
MAX3226CAE+ - Analog Devices - 3D model - Small Outline Packages - MAX 16 SSOP
click to zoom

MAX3226CAE+ Details

  • Manufacturer Part Number:

    MAX3226CAE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SSOP-5.3_MM

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-04-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX3226CAE+ Frequently Asked Questions (FAQs)

  • The MAX3226CAE+ is a high-speed device, so it's essential to follow good layout practices to minimize noise and ensure signal integrity. Place the device close to the connector, use short traces, and avoid vias. Keep the analog and digital grounds separate and connect them at a single point. Use a solid ground plane and decouple the power supply with a 0.1uF capacitor.
  • The MAX3226CAE+ has a thermal shutdown feature that disables the device when it exceeds a certain temperature (typically 150°C). To handle this, ensure good airflow around the device, use a heat sink if necessary, and monitor the device temperature. You can also use the TSD (thermal shutdown) pin to detect when the device has shut down due to overheating.
  • The recommended input voltage range for the MAX3226CAE+ is 3.0V to 5.5V. Operating the device outside this range may affect its performance, reliability, or even cause damage. Ensure that the input voltage is within the specified range to guarantee proper operation.
  • The MAX3226CAE+ is an ESD-sensitive device. To prevent damage, handle the device by the body or use an ESD wrist strap or mat. Avoid touching the pins or exposing the device to static electricity. Use ESD-protected packaging and storage materials, and follow proper handling procedures when assembling or repairing the device.
  • The MAX3226CAE+ supports data rates up to 1Mbps. However, the actual data rate may be limited by the specific application, cable length, and noise environment. Ensure that the device is operated within the specified data rate range to guarantee reliable communication.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3226CAE+ Overview

Use the download button to access the MAX3226CAE+ schematic symbol, PCB footprint, and 3D model.
