MAX3226EEAE+ - Analog Devices

Description: MAX3226EEAE+, Line Transceiver, EIA/TIA-232, RS-232, V.24, V.28, 3.3 V, 5 V, 16-Pin SSOP

Download MAX3226EEAE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

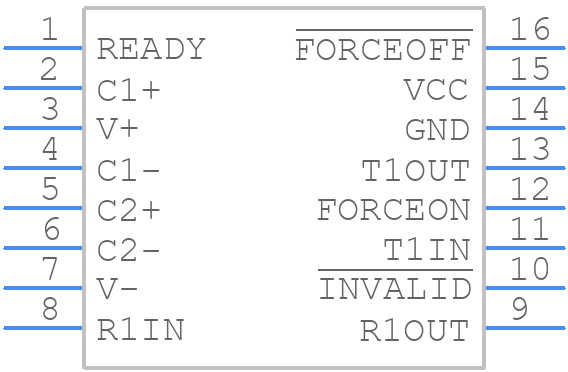

MAX3226EEAE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3226EEAE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A16+2
click to zoom
3D Models
MAX3226EEAE+ - Analog Devices - 3D model - Small Outline Packages - A16+2
click to zoom

MAX3226EEAE+ Details

  • Manufacturer Part Number:

    MAX3226EEAE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SSOP-5.3_MM

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm
