MAX3226EEUE+ - Analog Devices

Description: MAX3226EEUE+, Line Transceiver, EIA/TIA-232, RS-232, V.24, V.28 1 1 1 250kbit/s, 3 → 5.5 V, 16-Pin TSSOP

Download MAX3226EEUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

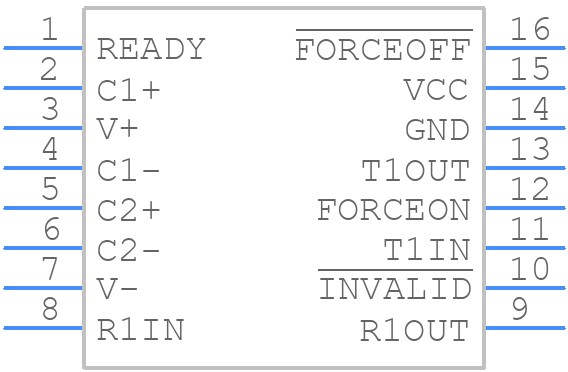

Symbol
MAX3226EEUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3226EEUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 16-ren1
click to zoom
3D Models
MAX3226EEUE+ - Analog Devices - 3D model - Small Outline Packages - TSSOP 16-ren1
click to zoom

MAX3226EEUE+ Details

  • Manufacturer Part Number:

    MAX3226EEUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3226EEUE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX3226EEUE+ involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the capacitors as close as possible to the device. Additionally, the device should be placed near the connector to minimize the length of the transmission lines.
  • To ensure reliable operation of the MAX3226EEUE+ in harsh environments, it is recommended to follow proper PCB design and layout guidelines, use a robust power supply, and consider adding protection devices such as TVS diodes or ESD protection devices. Additionally, the device should be operated within its specified temperature range and voltage ratings.
  • The maximum cable length supported by the MAX3226EEUE+ depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is approximately 100 meters at 9600bps and 10 meters at 115200bps. However, this can vary depending on the specific application and environment.
  • Yes, the MAX3226EEUE+ can be used in a multi-point or multi-drop configuration. However, it is recommended to use a repeater or a hub to ensure reliable operation and to prevent signal degradation. Additionally, the device should be configured to operate in a half-duplex mode to prevent data collisions.
  • Common issues with the MAX3226EEUE+ include data corruption, signal degradation, and device malfunction. To troubleshoot these issues, it is recommended to check the power supply, signal integrity, and device configuration. Additionally, using a logic analyzer or an oscilloscope can help identify the root cause of the issue.
