MAX3227EAAE+T - Analog Devices

Description: RS-232 Interface IC A +/- 15kV ESD-Protct,1A A,1Mbps,3.0Vto5.5V,RS-232 Transcvrs w/AutoShtdwn Pls

Download MAX3227EAAE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

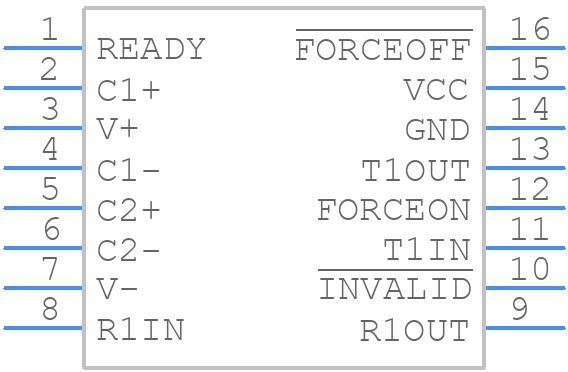

MAX3227EAAE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3227EAAE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A16+2
click to zoom
3D Models
MAX3227EAAE+T - Analog Devices - 3D model - Small Outline Packages - A16+2
click to zoom

MAX3227EAAE+T Details

  • Manufacturer Part Number:

    MAX3227EAAE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SSOP-5.3_MM

  • Package Description:

    SSOP, SSOP16,.3

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SSOP-5.3_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX3227EAAE+T Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX3227EAAE+T involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the device close to the connector. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX3227EAAE+T has a thermal pad that must be connected to a solid ground plane to dissipate heat. In high-temperature applications, it's recommended to use a heat sink or a thermal interface material to improve heat dissipation. Additionally, reducing the power supply voltage and minimizing the output current can also help reduce heat generation.
  • The MAX3227EAAE+T has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body rather than the pins. Additionally, using ESD protection devices such as TVS diodes or ESD arrays can provide additional protection.
  • To troubleshoot common issues with the MAX3227EAAE+T, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the device is properly configured and that the input and output signals are correct. Use an oscilloscope to check the signal integrity and look for signs of noise or distortion. If the issue persists, try replacing the device or checking for board-level issues such as layout or component problems.
  • When using the MAX3227EAAE+T in a non-standard or custom application, it's essential to carefully review the datasheet and ensure that the device meets the specific requirements of the application. This may involve customizing the device configuration, using external components to modify the device's behavior, or performing additional testing and validation to ensure that the device meets the required specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3227EAAE+T Overview

Use the download button to access the MAX3227EAAE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32, or try a keyword search, such as Line Driver or Receivers
