MAX3227EAE+ - Analog Devices

Description: MAX3227EAE+, Line Transceiver, EIA/TIA-232, RS-232, V.24, V.28 1 1 1 1Mbit/s, 3 → 5.5 V, 16-Pin SSOP

Download MAX3227EAE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

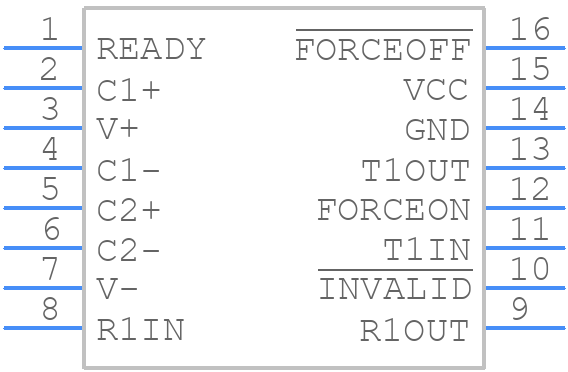

Symbol
MAX3227EAE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3227EAE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX3227EAE+
click to zoom
3D Models
MAX3227EAE+ - Analog Devices - 3D model - Small Outline Packages - MAX3227EAE+
click to zoom

MAX3227EAE+ Details

  • Manufacturer Part Number:

    MAX3227EAE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SSOP-5.3_MM

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-04-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX3227EAE+ Frequently Asked Questions (FAQs)

  • The MAX3227EAE+ is a high-speed device, so it's essential to follow good layout practices to minimize noise and ensure signal integrity. Place the device close to the connector, use short traces, and avoid vias. Keep the analog and digital grounds separate and connect them at a single point. Use a solid ground plane and decouple the power supply with a 0.1uF capacitor.
  • To ensure reliable operation over the entire operating temperature range (-40°C to +85°C), follow proper PCB design and layout guidelines, use a reliable power supply, and ensure that the device is properly decoupled. Also, consider the thermal resistance of the package and ensure that the device is not exposed to excessive heat.
  • The maximum cable length supported by the MAX3227EAE+ depends on the baud rate, cable quality, and noise environment. As a general guideline, the device can support cable lengths up to 100 meters at 115.2 kbps, but this can be reduced to 10 meters at 1 Mbps. It's recommended to use a high-quality cable and follow proper termination and shielding practices to minimize signal degradation.
  • The MAX3227EAE+ has built-in ESD protection, but it's still essential to follow proper ESD handling practices during manufacturing and assembly. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device from ESD events.
  • The recommended power-up sequence for the MAX3227EAE+ is to power up the VCC supply first, followed by the VIO supply. This ensures that the device's internal logic is properly initialized and configured. It's also recommended to add a power-on reset circuit to ensure that the device is properly reset during power-up.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3227EAE+ Overview

Use the download button to access the MAX3227EAE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
