MAX3227ECTE+ footprint, schematic symbol and 3D model by Analog Devices

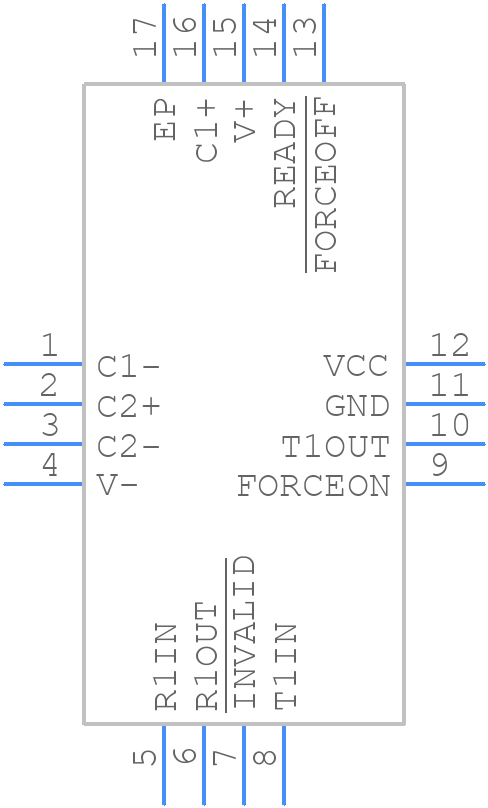

Symbol

click to zoom

PCB Footprints

MAX3227ECTE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 TQFN25

click to zoom

3D Models

MAX3227ECTE+ - Analog Devices - 3D model - Quad Flat No-Lead - 16 TQFN25

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX3227ECTE+
Part Number MAX3227ECTE+
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 16 TQFN25
Released Date May 21, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX3227ECTE+ Details

Manufacturer Part Number:
MAX3227ECTE+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
16-LFCSP-5X5X0.75
Package Description:
5 X 5 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, MO-220WHHB, TQFN-16
Pin Count:
16
Manufacturer Package Code:
16-LFCSP-5X5X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
1998-01-03
Manufacturer:
Analog Devices Inc
YTEOL:
9
Differential Output:
NO
Driver Number of Bits:
1
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-232; TIA-232; V.24; V.28
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Out Swing-Min:
10 V
Output Low Current-Max:
0.0016 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receiver Number of Bits:
1
Seated Height-Max:
0.8 mm
Supply Current-Max:
1 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.8 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm

MAX3227ECTE+ Frequently Asked Questions (FAQs)

The MAX3227ECTE+ is a high-speed device, and proper layout and placement are crucial for its operation. It is recommended to place the device close to the connector, use short traces, and avoid vias and stubs. Additionally, decoupling capacitors should be placed close to the device, and the power plane should be separated from the signal plane.
To ensure reliable operation in harsh environments, it is recommended to follow proper PCB design and layout guidelines, use a robust power supply, and provide adequate heat sinking. Additionally, consider using a device with a wider operating temperature range, such as the MAX3227ECTE+, and ensure that the device is properly soldered and inspected.
The maximum cable length supported by the MAX3227ECTE+ depends on the specific application and the type of cable used. However, as a general rule, the device can support cable lengths up to 100 meters at data rates up to 100 Mbps. For longer cable lengths or higher data rates, it is recommended to use a repeater or a signal conditioner.
To troubleshoot issues with the MAX3227ECTE+, start by checking the power supply and ensuring that it is within the recommended operating range. Next, verify that the device is properly configured and that the transmit and receive lines are properly connected. Use an oscilloscope to check the signal quality and look for signs of signal degradation or distortion. If the issue persists, consider using a logic analyzer or a protocol analyzer to debug the issue.
The MAX3227ECTE+ is a standard RS-232 transceiver and is compatible with other RS-232 transceivers from different manufacturers. However, it is recommended to verify the specific pinout and configuration of the device to ensure compatibility with other devices in the system.

Trust Checks

Community Provided

System Verified

Community Approved

MAX3227ECTE+ Overview

Use the download button to access the MAX3227ECTE+ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX32, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
