MAX3227ECUE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3227ECUE+ - Transceiver RS232, 3V-5.5V supply, 1 Driver, TSSOP-16

Download MAX3227ECUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

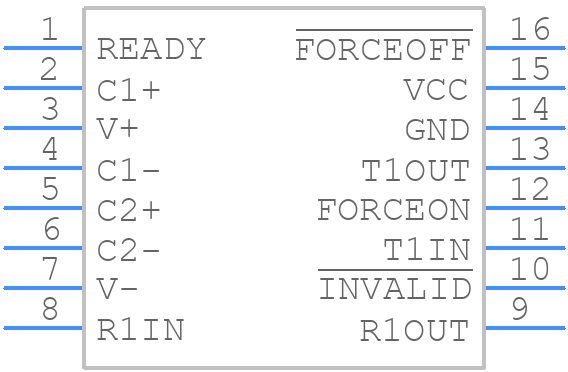

Symbol
MAX3227ECUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3227ECUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16+1
click to zoom
3D Models
MAX3227ECUE+ - Analog Devices - 3D model - Small Outline Packages - U16+1
click to zoom

MAX3227ECUE+ Details

  • Manufacturer Part Number:

    MAX3227ECUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3227ECUE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX3227ECUE+ involves keeping the device close to the UART signals, using short traces, and avoiding vias under the device. It's also important to keep the VCC and GND pins as close as possible to reduce noise and ensure proper operation.
  • The MAX3227ECUE+ has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding yourself before handling the device, and avoiding static-inducing activities.
  • The maximum cable length supported by the MAX3227ECUE+ depends on the baud rate and cable quality. As a general rule, the MAX3227ECUE+ can support cable lengths up to 100 meters at 9600bps, but this can be reduced to 10 meters or less at higher baud rates. It's recommended to use a high-quality cable and follow proper termination and shielding techniques to ensure reliable operation.
  • Yes, the MAX3227ECUE+ can be used in a multi-point RS-232 configuration, but it's important to ensure that the total capacitance of the cable and connectors does not exceed the maximum recommended value of 2500pF. It's also recommended to use a high-quality cable and follow proper termination and shielding techniques to ensure reliable operation.
  • Common issues with the MAX3227ECUE+ include incorrect pin connections, improper power supply voltage, and noise or interference on the UART signals. To troubleshoot these issues, it's recommended to use a logic analyzer or oscilloscope to verify the UART signals, check the power supply voltage and pin connections, and ensure that the device is properly grounded and shielded.
