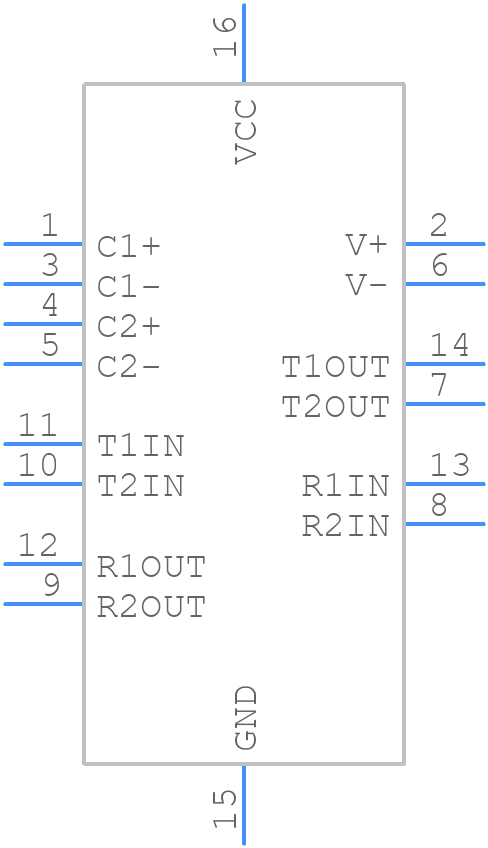

MAX3232ESE+ - Analog Devices

MAX3232ESE+ Details

• Manufacturer Part Number:

  MAX3232ESE+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  16-SOIC_N-150_MIL

• Package Description:

  SOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  16-SOIC_N-150_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1996-05-23

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  EXTERNAL CHARGE PUMP

• Differential Output:

  NO

• Driver Number of Bits:

  2

• High Level Input Current-Max:

  0.000001 A

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232; TIA-232

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  9.9 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  10 V

• Output Characteristics:

  TOTEM-POLE

• Output Low Current-Max:

  0.0016 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  2

• Seated Height-Max:

  1.75 mm

• Supply Current-Max:

  1 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
