MAX3241ECAI+ - Analog Devices

Description: MAX3241ECAI+, Line Transceiver, EIA/TIA-232, RS-232, V.24, V.28 3-TX 5-RX 3-TRX, 3.3 V, 5 V, 28-Pin SSOP

Download MAX3241ECAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

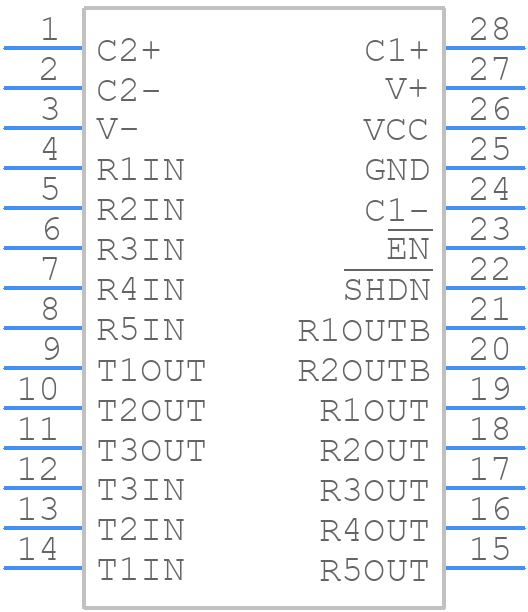

MAX3241ECAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3241ECAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 28 SSOP
click to zoom
3D Models
MAX3241ECAI+ - Analog Devices - 3D model - Small Outline Packages - MAX 28 SSOP
click to zoom

MAX3241ECAI+ Details

  • Manufacturer Part Number:

    MAX3241ECAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-03-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    NO

  • Driver Number of Bits:

    3

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Number of Functions:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    0.3 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.29 mm

MAX3241ECAI+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX3241ECAI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the device away from high-frequency noise sources and to use a low-ESR capacitor for the VCC bypass.
  • To ensure reliable operation of the MAX3241ECAI+ in a noisy environment, it's recommended to use a low-pass filter on the input lines, add a common-mode choke to the RS-232 lines, and use a shielded cable for the RS-232 connection. Additionally, consider using a device with built-in electrostatic discharge (ESD) protection, such as the MAX3241ECAI+.
  • The maximum cable length supported by the MAX3241ECAI+ depends on the baud rate and the quality of the cable. As a general rule, the maximum cable length is 50 feet at 9600bps, 20 feet at 19,200bps, and 10 feet at 38,400bps. However, it's recommended to use a cable with a characteristic impedance of 100 ohms and a capacitance of less than 2500pF/ft to ensure reliable operation.
  • To troubleshoot issues with the MAX3241ECAI+, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, verify that the input signals are within the recommended voltage range and that the output signals are not overloaded. Use an oscilloscope to check the signal waveforms and look for signs of noise or distortion. Finally, check the device's temperature and ensure that it's within the recommended operating range.
  • Yes, the MAX3241ECAI+ is compatible with both 3.3V and 5V logic. The device's VCC pin can be connected to either a 3.3V or 5V power supply, and the device's logic inputs and outputs are compatible with both 3.3V and 5V logic levels.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3241ECAI+ Overview

Use the download button to access the MAX3241ECAI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32, or try a keyword search, such as Line Driver or Receivers
