- Stock & Prices $ Price & Stock for MAX3241EEAI+T
- Part Number MAX3241EEAI+T
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MAX3241EEAI+T
- Released Date Jan 30, 2019
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
MAX3241EEAI+T Details
-
Manufacturer Part Number:
MAX3241EEAI+T
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
28-SSOP-5.3_MM
-
Package Description:
SSOP, SSOP28,.3
-
Pin Count:
28
-
Manufacturer Package Code:
28-SSOP-5.3_MM
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
MAX3241EEAI+T Frequently Asked Questions (FAQs)
-
The recommended layout and routing for the MAX3241EEAI+T involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing trace lengths and loops. It's also important to follow the datasheet's guidelines for pin placement and routing.
-
To ensure reliable operation of the MAX3241EEAI+T in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device.
-
When using the MAX3241EEAI+T in a system with multiple transceivers, it's essential to ensure that each transceiver has its own dedicated supply voltage and ground connections to prevent noise and interference. Additionally, the system designer should consider the total current consumption and thermal dissipation of all transceivers.
-
To troubleshoot issues with the MAX3241EEAI+T, start by verifying the power supply and clock signals, then check the transmit and receive data lines for proper signal integrity. Use oscilloscopes or logic analyzers to capture and analyze the signal waveforms, and consult the datasheet and application notes for guidance on debugging techniques.
-
When using the MAX3241EEAI+T in a system with EMI or RFI, it's essential to follow proper shielding and grounding practices, such as using metal enclosures, shielding cables, and providing a solid ground plane. Additionally, the system designer should consider using EMI filters or ferrite beads to reduce noise and interference.
Trust Checks
Community Provided
System Verified
Community Approved
MAX3241EEAI+T Overview

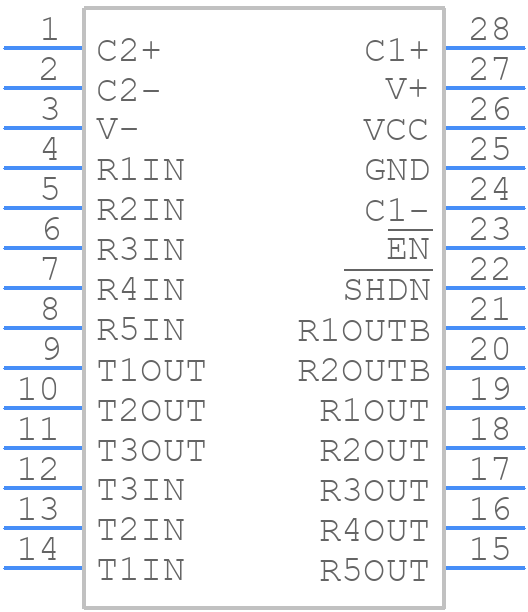

Use the download button to access the MAX3241EEAI+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32,
or try a keyword search, such as Line Driver or Receivers
