MAX3250EAI+ - Analog Devices

Description: MAX3250EAI+, Dual Line Transceiver 2 2 2 250 kbit/s, 3 → 5.5 V, 28-Pin SSOP

Download MAX3250EAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

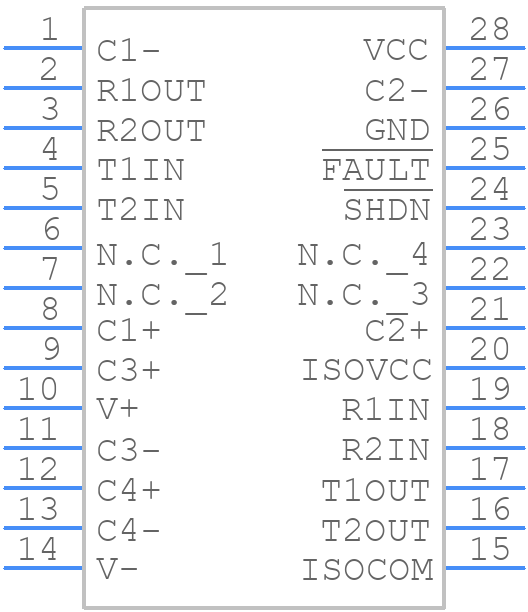

MAX3250EAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3250EAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28 SSOP
click to zoom
3D Models
MAX3250EAI+ - Analog Devices - 3D model - Small Outline Packages - 28 SSOP
click to zoom

MAX3250EAI+ Details

  • Manufacturer Part Number:

    MAX3250EAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    5.30 MM, MO-150, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-05-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX3250EAI+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX3250EAI+ can be found in the MAX3250EAI+ Evaluation Kit User Guide (UG-113) and the MAX3250EAI+ Layout and Routing Guidelines application note (AN-113). These resources provide detailed guidance on PCB layout, component placement, and routing to ensure optimal performance and minimize noise.
  • The MAX3250EAI+ can be configured using the MAX3250EAI+ Evaluation Kit software, which provides a graphical user interface for setting registers, monitoring signals, and testing the device. The software can be downloaded from the Analog Devices website. Additionally, the MAX3250EAI+ datasheet and application notes provide detailed information on register settings and configuration options.
  • The MAX3250EAI+ is specified to operate over a temperature range of -40°C to +85°C. However, the device can be operated at temperatures beyond this range with reduced performance and reliability. It is recommended to consult the datasheet and application notes for more information on temperature-related specifications and limitations.
  • Troubleshooting issues with the MAX3250EAI+ typically involves checking the power supply, clock signals, and data lines. The MAX3250EAI+ datasheet and application notes provide guidance on troubleshooting common issues, such as clock jitter, data corruption, and power-on reset failures. Additionally, the Analog Devices support team can provide assistance with troubleshooting and debugging.
  • The MAX3250EAI+ is compatible with various industry standards and protocols, including PCIe, SATA, and USB. The device is also compliant with relevant specifications, such as the PCI Express Base Specification and the SATA Specification. Consult the datasheet and application notes for more information on compatibility and compliance.
