MAX32660GTG+T - Analog Devices

Description: ARM® Cortex®-M4F DARWIN Microcontroller IC 32-Bit Single-Core 96MHz 256KB (256K x 8) FLASH 24-TQFN (3x3)

Download MAX32660GTG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

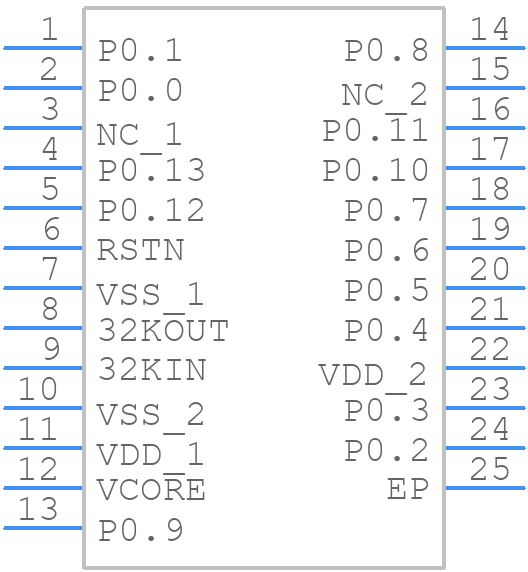

MAX32660GTG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX32660GTG+T - Analog Devices PCB footprint - Other - Other - 24-LFCSP-3X3X0.75
click to zoom
3D Models
MAX32660GTG+T - Analog Devices - 3D model - Other - 24-LFCSP-3X3X0.75
click to zoom

MAX32660GTG+T Details

  • Manufacturer Part Number:

    MAX32660GTG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-3X3X0.75

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Date Of Intro:

    2018-03-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Has ADC:

    NO

  • Bit Size:

    32

  • Clock Frequency-Max:

    98.5 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    14

  • Number of Terminals:

    24

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    96 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MAX32660GTG+T Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the MAX32660GTG+T is 32.768 kHz, which is the typical frequency used for real-time clock (RTC) applications.
  • To configure the MAX32660GTG+T for low-power mode, you need to set the Power Mode Control Register (PMC) to enable the desired low-power mode (e.g., sleep, deep sleep, or shutdown). Additionally, you can also disable unnecessary peripherals and clocks to reduce power consumption.
  • The maximum operating temperature range for the MAX32660GTG+T is -40°C to +85°C, making it suitable for industrial and automotive applications.
  • Yes, the MAX32660GTG+T has an external memory interface that allows you to connect external flash memory or SRAM. You can use the External Memory Interface (EMI) to access the external memory.
  • To implement secure boot on the MAX32660GTG+T, you need to use the Secure Boot Loader (SBL) feature, which verifies the authenticity of the firmware before booting. You can use the MAX32660GTG+T's built-in cryptographic accelerators to implement secure boot.
