MAX32660GWEBL+T - Analog Devices

Description: 16 BUMPS WLP PKG. 0.35 mm PITCH,W161K1+1 Tiny, Ultra-Low-Power Arm Cortex-M4 Processor with FPU-Based Microcontroller (MCU) with 256KB Flash and 96KB SRAM

Download MAX32660GWEBL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

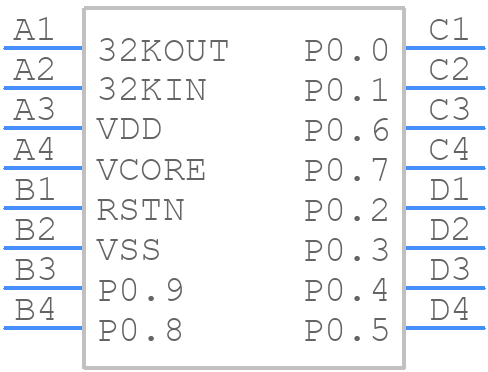

MAX32660GWEBL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX32660GWEBL+T - Analog Devices PCB footprint - BGA - BGA - W161K1+1
click to zoom
3D Models
MAX32660GWEBL+T - Analog Devices - 3D model - BGA - W161K1+1
click to zoom

MAX32660GWEBL+T Details

  • Manufacturer Part Number:

    MAX32660GWEBL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Date Of Intro:

    2018-03-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Has ADC:

    NO

  • Bit Size:

    32

  • Clock Frequency-Max:

    98.5 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    10

  • Number of Terminals:

    16

  • PWM Channels:

    YES

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    96 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MAX32660GWEBL+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX32660GWEBL+T can be found in the MAX32660 Evaluation Kit User Guide (UG570) and the MAX32660 PCB Layout Guidelines application note (AN571). These resources provide detailed guidance on component placement, routing, and thermal management to ensure optimal performance and reliability.
  • To optimize power consumption, use the device's power modes (e.g., sleep, hibernate, and shutdown) to reduce power consumption when the device is not actively processing data. Additionally, use the clock gating feature to disable clocks to unused peripherals, and adjust the clock frequency to the lowest required for the application. Refer to the MAX32660 datasheet and the Power Management application note (AN572) for more information.
  • The MAX32660GWEBL+T has an operating temperature range of -40°C to +85°C. However, the device can be operated at temperatures up to +105°C for short periods of time (e.g., during manufacturing testing). Refer to the MAX32660 datasheet for more information on temperature specifications and derating.
  • To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components as needed. Additionally, use the device's built-in electromagnetic interference (EMI) filters and follow the guidelines in the MAX32660 EMC application note (AN573).
  • The recommended crystal oscillator configuration for the MAX32660GWEBL+T is a 12MHz crystal with a load capacitance of 10pF to 20pF. Refer to the MAX32660 datasheet and the Crystal Oscillator application note (AN574) for more information on crystal selection and configuration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX32660GWEBL+T Overview

Use the download button to access the MAX32660GWEBL+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32, or try a keyword search, such as Microcontrollers
