MAX32664GWEC+T - Analog Devices

Description: ● Biometric Sensor Hub Enables Faster Time to Market ● Finger-Based (Version A) Algorithms Measure: • Pulse Heart Rate • Pulse Blood Oxygen Saturation (SpO2) ● Wrist-Based (Version B) Algorithm Measures: • Pulse Heart Rate ● Wrist-Based or Ear-Based (Version C) Algorithms Measure: • Pulse Heart Rate • Pulse Blood Oxygen Saturation (SpO2) ● Finger-Based (Version D) Algorithms Measure: • Pulse Heart Rate • Pulse Blood Oxygen Saturation (SpO2) • Estimated Blood Pressure ● Both Raw and Processed D

Download MAX32664GWEC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

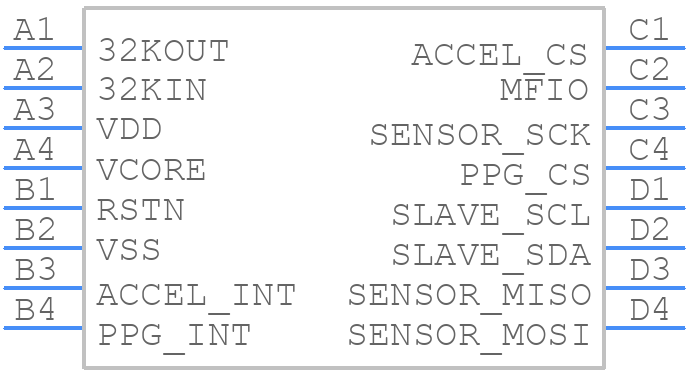

MAX32664GWEC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX32664GWEC+T - Analog Devices PCB footprint - BGA - BGA - W161K1+1
click to zoom
3D Models
MAX32664GWEC+T - Analog Devices - 3D model - BGA - W161K1+1
click to zoom

MAX32664GWEC+T Details

  • Manufacturer Part Number:

    MAX32664GWEC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    16-WLCSP-N/A

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2018-06-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Sensors/Transducers Type:

    SENSOR/TRANSDUCER CIRCUIT

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

MAX32664GWEC+T Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the MAX32664GWEC+T is 32.768 kHz, which is used as the clock source for the real-time clock (RTC) and other peripherals.
  • To configure the MAX32664GWEC+T for low-power operation, you can use the Power Mode Controller (PMC) to select the desired power mode, such as Sleep or Deep Sleep, and configure the clock sources and peripherals to minimize power consumption. Additionally, you can use the Dynamic Voltage and Frequency Scaling (DVFS) feature to adjust the CPU frequency and voltage based on the system's workload.
  • The maximum amount of current that the MAX32664GWEC+T can source or sink on its GPIO pins is 4 mA per pin, with a total current limit of 100 mA for all GPIO pins combined.
  • To implement secure boot on the MAX32664GWEC+T, you can use the Secure Boot feature, which uses a combination of hardware and software mechanisms to ensure that only authorized firmware is executed on the device. This includes using a secure boot loader, encrypting the firmware, and verifying the firmware's digital signature.
  • The maximum operating temperature range for the MAX32664GWEC+T is -40°C to +85°C, with a junction temperature of up to 125°C.
