- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX32674CGWG+
- Part Number MAX32674CGWG+
- Manufacturer Analog Devices
- Pin Count 24
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - MAX32674CGWG+
- Released Date Jun 22, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX32674CGWG+ Details
-
Manufacturer Part Number:
MAX32674CGWG+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
24-WLCSP-N/A
-
Pin Count:
24
-
Manufacturer Package Code:
24-WLCSP-N/A
-
Date Of Intro:
2022-06-17
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
3
-
Sensors/Transducers Type:
SENSOR/TRANSDUCER CIRCUIT
MAX32674CGWG+ Frequently Asked Questions (FAQs)
-
The recommended crystal oscillator frequency for the MAX32674CGWG+ is 32.768 kHz, which is used as the clock source for the real-time clock (RTC) and other internal peripherals.
-
To configure the MAX32674CGWG+ for low-power operation, you can use the Power Mode Controller (PMC) to select the desired power mode, such as Sleep or Deep Sleep, and configure the clock sources and peripherals accordingly. Additionally, you can use the Dynamic Voltage and Frequency Scaling (DVFS) feature to adjust the CPU frequency and voltage based on the system's workload.
-
The maximum current consumption of the MAX32674CGWG+ depends on the operating mode and the peripherals used. According to the datasheet, the maximum current consumption is approximately 150 mA when operating at 1.8V and 48 MHz, with all peripherals enabled. However, this value can be reduced by configuring the device for low-power operation and disabling unused peripherals.
-
The MAX32674CGWG+ has a 12-bit ADC with multiple channels. To use the ADC, you need to configure the ADC clock source, select the desired channel, and set the conversion mode (single-shot or continuous). You can then use the ADC API provided in the MAX32674CGWG+ software development kit (SDK) to initiate the conversion and read the converted data.
-
Yes, the MAX32674CGWG+ has an external memory interface that allows you to connect external memory devices, such as flash memory or SRAM. You can use the External Memory Controller (EMC) to configure the memory interface and access the external memory.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX32674CGWG+ Overview

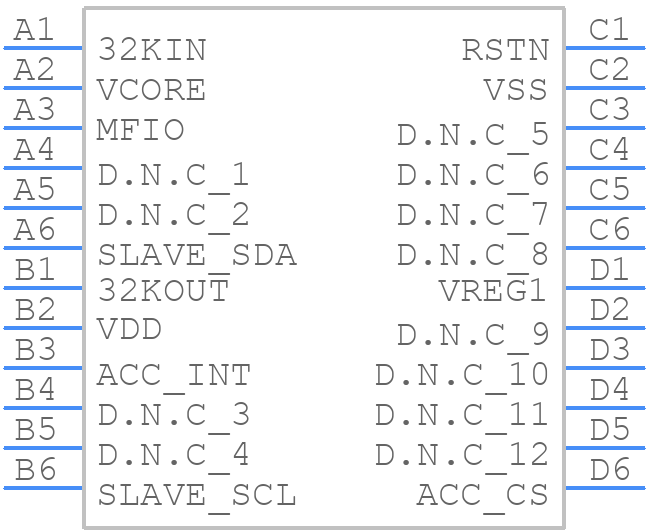

Use the download button to access the MAX32674CGWG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32,
or try a keyword search, such as Other Sensors/Transducers
