MAX3292ESD+ - Analog Devices

Description: MAX3292ESD+, Line Transceiver, RS-485, RS-422 10Mbit/s Differential, 4.75 → 5.25 V, 14-Pin SOIC

Download MAX3292ESD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

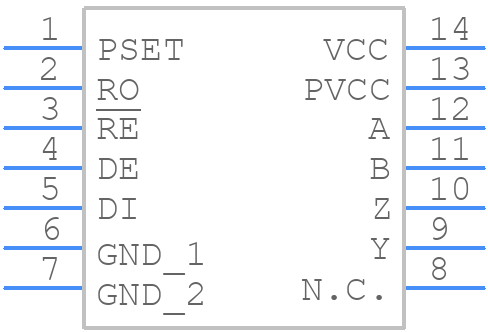

MAX3292ESD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3292ESD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO 14 pinout
click to zoom
3D Models
MAX3292ESD+ - Analog Devices - 3D model - Small Outline Packages - SO 14 pinout
click to zoom

MAX3292ESD+ Details

  • Manufacturer Part Number:

    MAX3292ESD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012B, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.4 V

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    85 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    65 ns

  • Width:

    3.9 mm

MAX3292ESD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3292ESD+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the signal source. Additionally, using a shielded cable and connector for the input signal can help reduce EMI.
  • To ensure proper power and decoupling, use a high-quality power supply with low noise and ripple, and decouple the device with a 0.1uF ceramic capacitor between VCC and GND, placed as close to the device as possible. Additionally, use a 10uF electrolytic capacitor in parallel to filter out low-frequency noise.
  • The maximum cable length that can be used with the MAX3292ESD+ depends on the signal frequency and the cable characteristics. As a general rule, a cable length of up to 10 meters can be used for signals up to 100MHz, while shorter cables are recommended for higher frequencies. It's also important to use a shielded cable and to terminate the cable properly to prevent signal reflections.
  • To troubleshoot issues with the MAX3292ESD+, start by checking the power supply and decoupling, ensuring that the device is properly powered and decoupled. Next, check the input signal quality and integrity, and verify that the device is properly configured and terminated. Use an oscilloscope to visualize the input and output signals, and check for any signs of oscillation or distortion. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the MAX3292ESD+ can be used in a differential signaling application. To do so, connect the input signals to the IN+ and IN- pins, and use the device's internal differential amplifier to amplify the signal. The output will be a differential signal, which can be connected to a differential receiver or further processed as needed. Consult the datasheet and application notes for more information on using the MAX3292ESD+ in a differential signaling application.
