MAX3311EEUB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3311EEUB+T - Transceiver RS232, 4.5V-5.5V supply, 1 Driver, µMAX-10

Download MAX3311EEUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

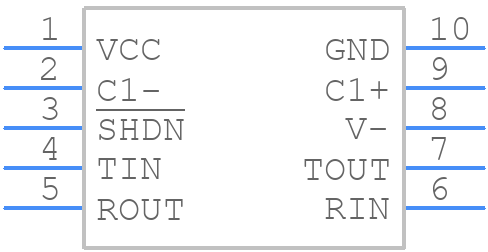

MAX3311EEUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3311EEUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX
click to zoom
3D Models
MAX3311EEUB+T - Analog Devices - 3D model - Small Outline Packages - 10 µMAX
click to zoom

MAX3311EEUB+T Details

  • Manufacturer Part Number:

    MAX3311EEUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    TSSOP,

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX3311EEUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3311EEUB+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed near the connector to minimize the length of the input traces.
  • Proper termination for high-speed signals involves using a series resistor (Rs) and a shunt capacitor (Ct) at the receiver end. The values of Rs and Ct depend on the signal frequency and the characteristic impedance of the transmission line. A general guideline is to use Rs = 50-75 ohms and Ct = 10-20 pF. The datasheet provides more detailed information on termination schemes.
  • The maximum cable length supported by the MAX3311EEUB+T depends on the signal frequency, cable type, and termination scheme. As a general guideline, the device can support cable lengths up to 10 meters at 100 Mbps and up to 5 meters at 400 Mbps. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • The MAX3311EEUB+T can be configured for different data rates by adjusting the values of the external resistors and capacitors. The datasheet provides a table that lists the recommended component values for different data rates. Additionally, the device has a programmable equalizer that can be adjusted to optimize the signal quality for a specific data rate.
  • The power consumption of the MAX3311EEUB+T depends on the data rate, signal frequency, and operating mode. The typical power consumption is around 150 mW at 100 Mbps and 300 mW at 400 Mbps. To reduce power consumption, the device has a low-power mode that can be enabled by pulling the EN pin low. Additionally, the power consumption can be reduced by using a lower supply voltage or by disabling the device when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3311EEUB+T Overview

Use the download button to access the MAX3311EEUB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX33, or try a keyword search, such as Line Driver or Receivers
