MAX3313ECUB+ - Analog Devices

Description: MAX3313ECUB+, Line Transceiver, EIA/TIA-232, RS-232 1 1 1 460kbit/s, 5 V, 10-Pin µMAX

Download MAX3313ECUB+ Model

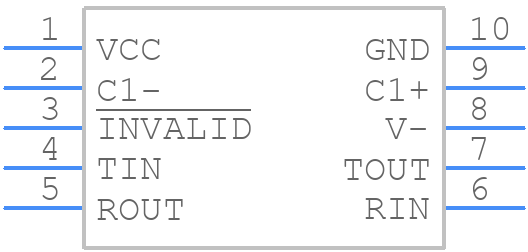

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX3313ECUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX-1
click to zoom
3D Models
MAX3313ECUB+ - Analog Devices  - 3D model - Small Outline Packages - 10 µMAX-1
click to zoom

MAX3313ECUB+ Details

  • Manufacturer Part Number:

    MAX3313ECUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX3313ECUB+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX3313ECUB+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to place it as close as possible to the VCC pin.
  • To ensure proper power-up and power-down of the MAX3313ECUB+, it's recommended to follow a specific power-up sequence. First, apply VCC, then apply VEE, and finally apply the input signal. During power-down, remove the input signal, then VEE, and finally VCC. This sequence helps prevent latch-up and ensures reliable operation.
  • The maximum data rate that can be achieved with the MAX3313ECUB+ depends on the specific application and the quality of the transmission line. However, in general, the MAX3313ECUB+ can support data rates up to 100 Mbps over short distances (less than 10 meters) and up to 10 Mbps over longer distances (up to 100 meters).
  • Common issues with the MAX3313ECUB+ include signal distortion, noise, and non-monotonicity. To troubleshoot these issues, check the PCB layout for noise and signal integrity issues, ensure proper power supply decoupling, and verify that the input signal is within the recommended range. Additionally, check the output signal for distortion and non-monotonicity, and adjust the output termination resistors if necessary.
  • The MAX3313ECUB+ is a 3.3V device, but it can be interfaced with other logic families such as 5V or 1.8V devices using level translators or voltage dividers. However, it's essential to ensure that the input signal is within the recommended range and that the output signal is properly terminated to prevent signal reflection and distortion.
