MAX3387EEUG+T - Analog Devices

Description: 3V, ±15kV ESD-Protected, AutoShutdown Plus RS-232 Transceiver for PDAs and Cell Phones

Download MAX3387EEUG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

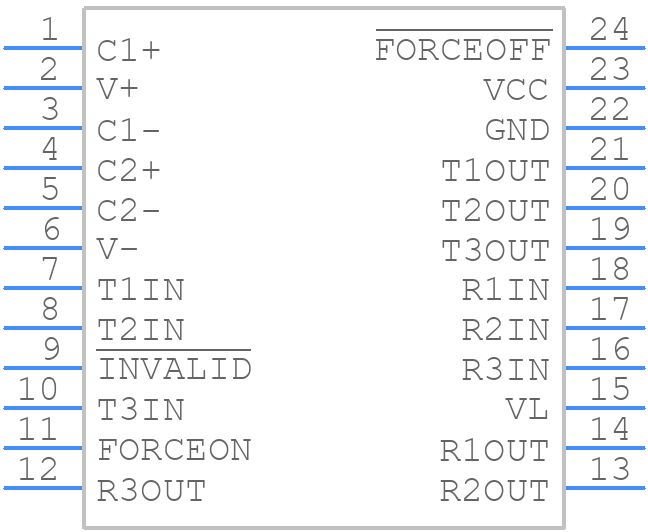

MAX3387EEUG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3387EEUG+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24 TSSOP height 1.1gfcgf
click to zoom
3D Models
MAX3387EEUG+T - Analog Devices - 3D model - Small Outline Packages - 24 TSSOP height 1.1gfcgf
click to zoom

MAX3387EEUG+T Details

  • Manufacturer Part Number:

    MAX3387EEUG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP, TSSOP24,.25

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-TSSOP_4.4-4.4_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    NO

  • Driver Number of Bits:

    3

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX3387EEUG+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3387EEUG+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components for the MAX3387EEUG+T depends on the specific application requirements, such as the input voltage, output voltage, and output current. Analog Devices provides a component selection guide in the datasheet, and online tools such as the MAX3387EEUG+T Component Selector can also be used to help choose the correct components.
  • The MAX3387EEUG+T has an operating temperature range of -40°C to +125°C. At higher temperatures, the device's performance may be affected, including reduced efficiency, increased quiescent current, and decreased output voltage accuracy. It's essential to ensure proper thermal management and heat sinking to maintain optimal performance.
  • To troubleshoot issues with the MAX3387EEUG+T, start by checking the input voltage, output voltage, and output current to ensure they are within the specified ranges. Verify that the external components, such as the inductor and capacitors, are correctly selected and properly soldered. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MAX3387EEUG+T is a high-reliability device that meets various industry standards, including AEC-Q100 for automotive applications and IEC 60601-1 for medical applications. It's essential to review the device's certifications and compliance standards to ensure it meets the specific requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3387EEUG+T Overview

Use the download button to access the MAX3387EEUG+T schematic symbol, PCB footprint, and 3D model.
